SSBFHSD

Bi-Metal Timber to Steel Screw

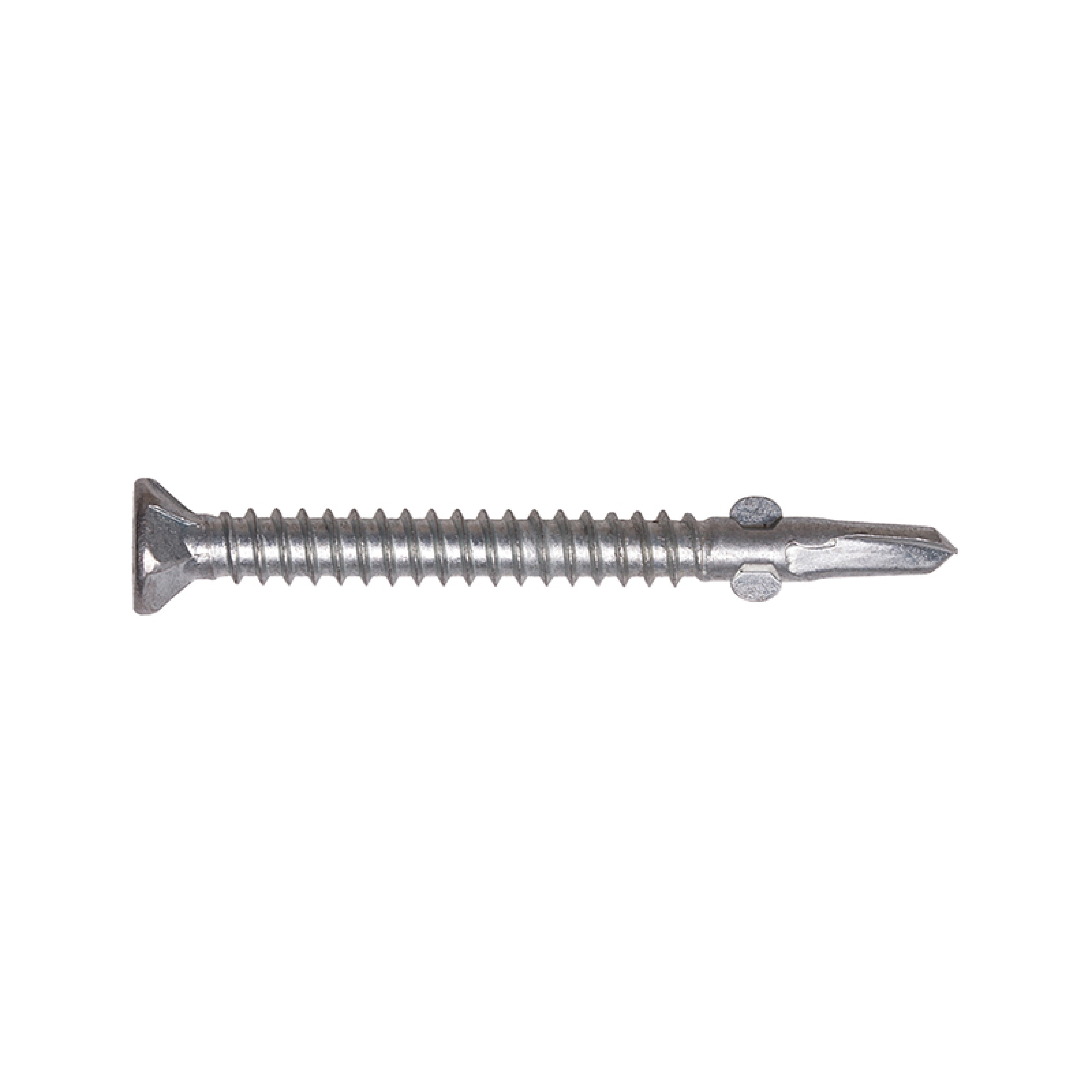

The SSBFHSD screw is a bi-metal screw designed for timber to steel applications (1.2-2.4mm steel thickness). The bi-metal design consists of A4 stainless steel with a carbon steel winged drill point which is perfect for steel joist applications whilst still offering superior corrosion resistance. It has a countersunk ribbed flat head, fine thread and drill point with wings. The wings ream a hole larger in the timber and break off when they hit the steel allowing the timber to be pulled tight to the steel.

Service class 3
Stainless steel A4
Severe

Product Details

Images

Features

Features

  • Drives easily through 1.2–2.4 mm steel without predrilling
  • A4 Stainless steel for severe corrosion resistance
  • Winged design avoids sheet ride
  • Zinc coating to avoid dissimilar metal corrosion
  • Driver bit included (BIT2SE)

Material

Bi-metal - A4 stainless steel with carbon steel drill point

Application

Applications

  • Timber to steel decking
  • Maximum recommended board thickness 28mm
  • Recommended steel thickness 1.2–2.4mm

Technical Data

Dimensions

Product Dimensions

References Fastener dimensions [mm] Max. board thickness [mm] Max. steel thickness [mm] Qty per strip Qty per Box Recommended RPM Quik Drive Attachment
d l dh
SSBFHSD2SE4.9508.5< 28mm1.2–2.43010002500QDPROLDHG2
