SWT

Brick to SIP Tie

The SWT wall ties are used to restrain external brickwork back to SIP (Structural Insulated Panels).


The SWT offers an outstanding combination of performance and cost
in a wall tie.


Allows up to 24mm of differential movement.

Technical Data Sheet
CE Marking

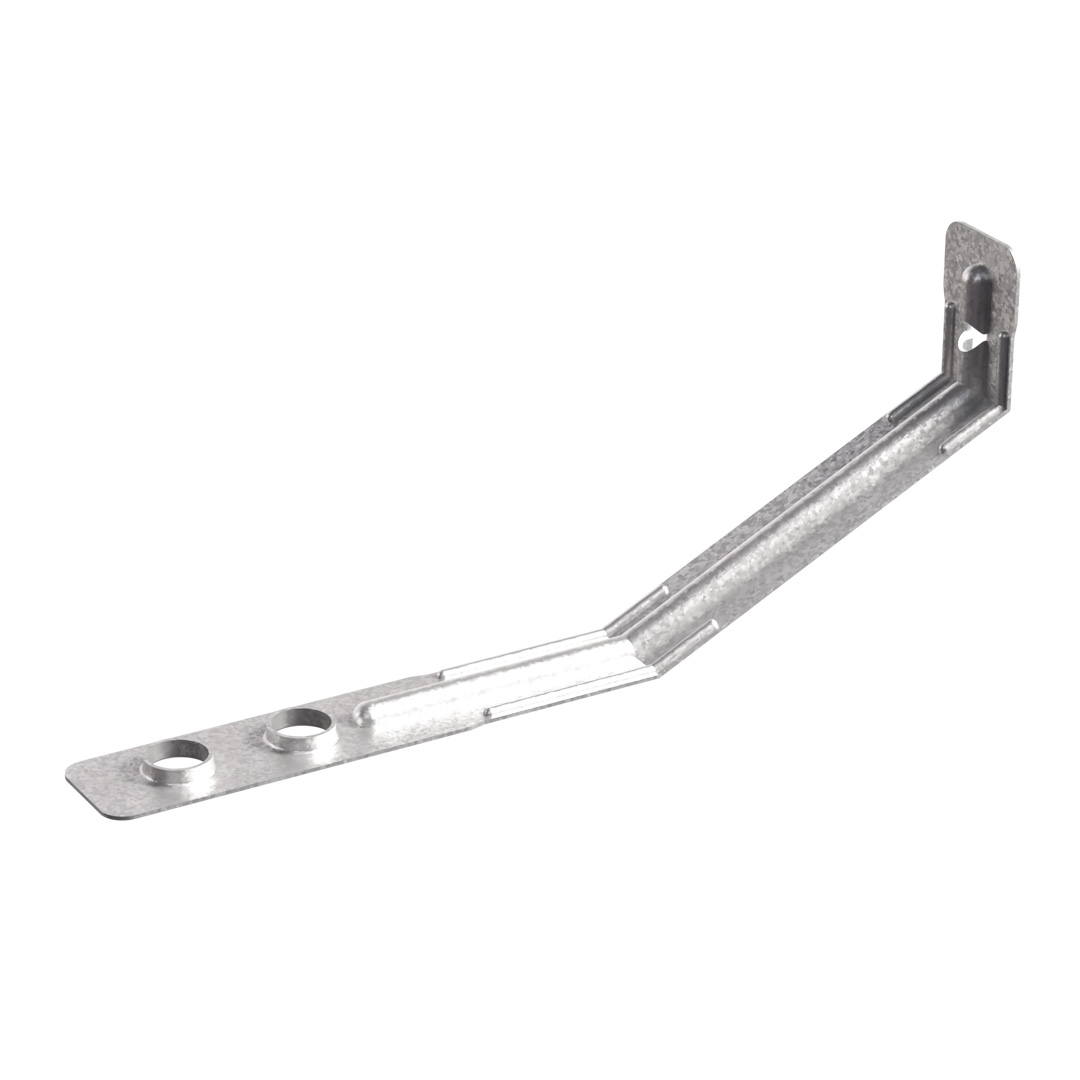

SWT main image

Product Details

Images


Technical Data

Dimensions


SWT Product Dimensions

References Application Type Classification Cavity Width [mm] B [mm] Declared Tensile Load Capacity [N] Declared Compressive Load Capoacity [N]
SWT50SIP Cavity Wall TieType 650124630440
SWT75SIP Cavity Wall TieType 675149630440
SWT100SIP Cavity Wall TieType 6100174630440

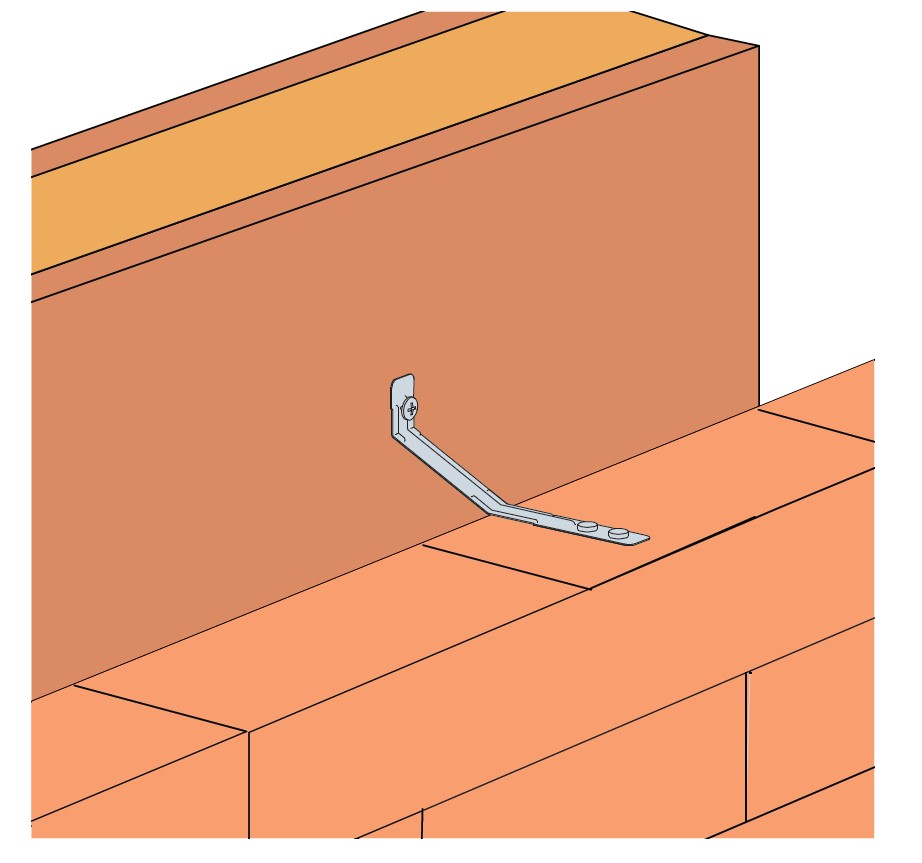

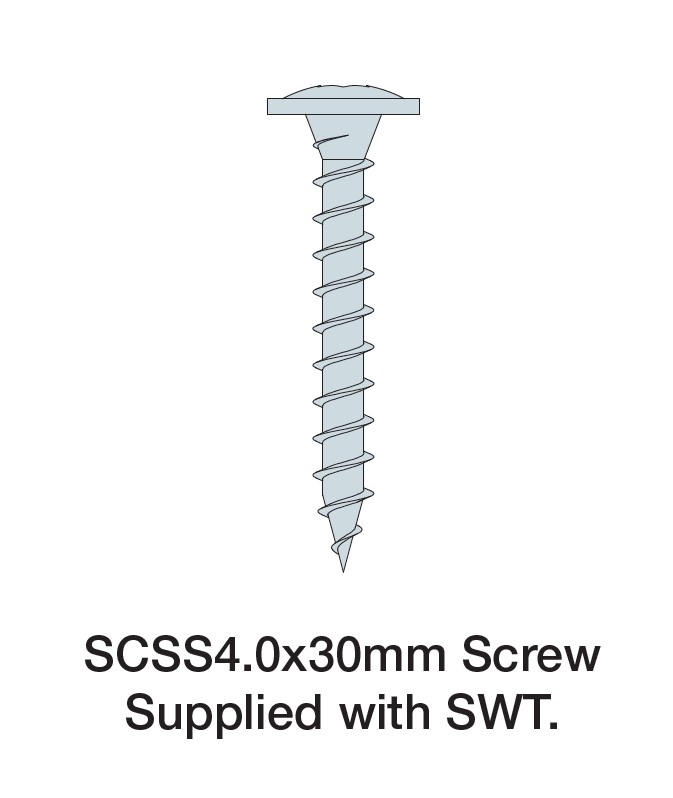

SWT Installed with SCSS4.0x30mm Screw (Supplied with tie)

Tested and approved for use on 11mm OSB (and Thicker)
