CLNG
Cladding Nail - Hot Dip Galvanised

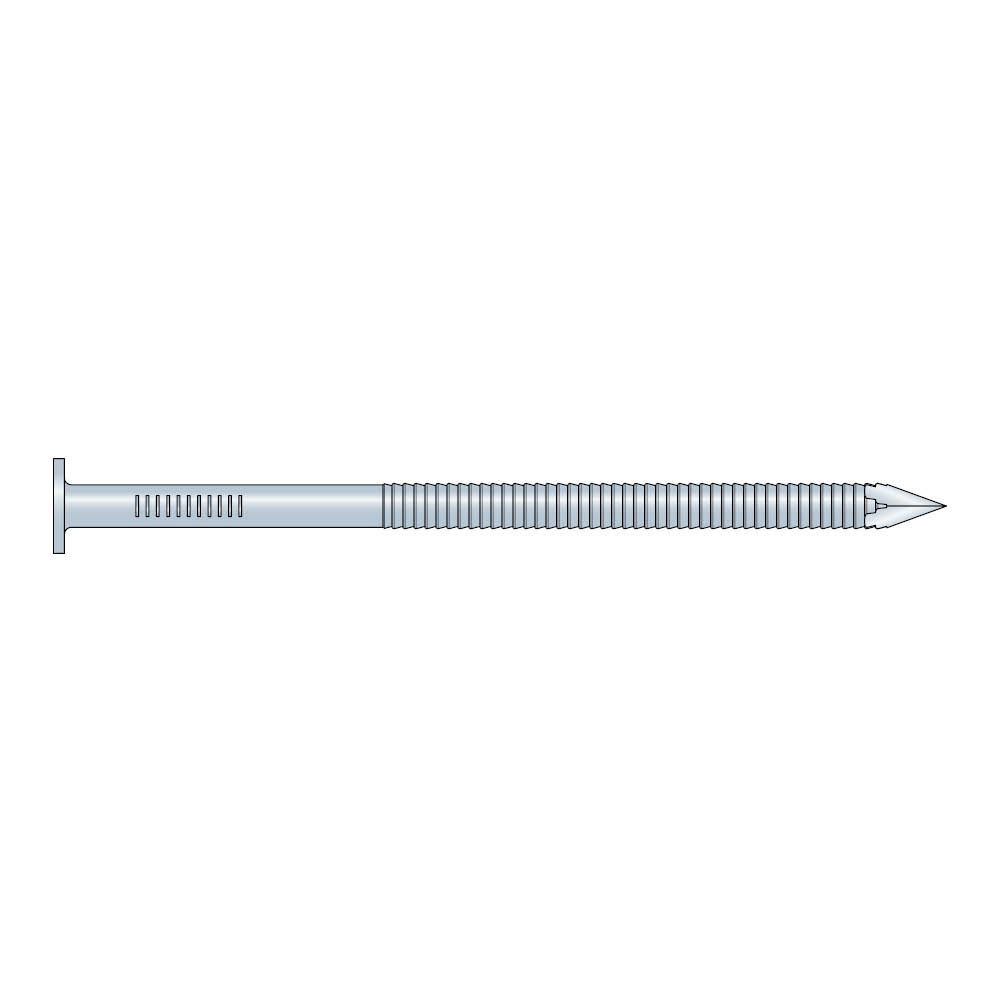

The CLNG cladding is developed for installing wood cladding. The length of the nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.
CE Marking
Service class 3
Hot-dip galvanised steel
Outdoor
Solid Wood
Product Details
Images
Features
Application
Technical Data
Dimensions
Product dimensions
| References | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | |||||
| CLNG2.8x65 | 75649 | 2056003 | 55841565 | 2.8 | 63.5 | 6.9 | - | 36.6 | 0.6 | 50 | 2.5 | 41.1 | - | 500 |
| CLNG2.8x48 | 75648 | 2056002 | 55841554 | 47 | 6.9 | - | 36.6 | 0.6 | 24 | 2.5 | 24.6 | - | 1000 | |
