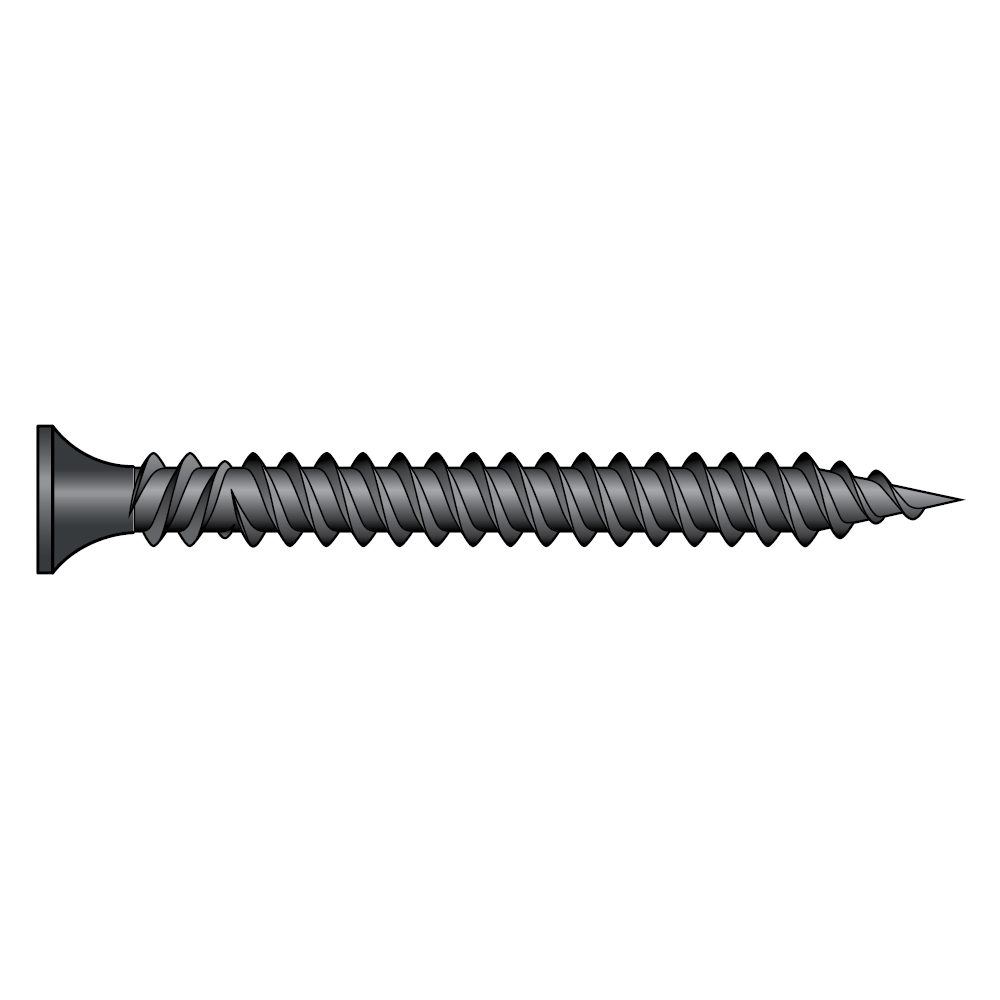

RDWF

Dense Drywall Screw

The RDWF screw is recommended for fixing dense plasterboard to timber or light gauge steel from 0.6mm - 1.2mm thick. The reverse thread at the head end of the screw assists with countersinking the head into board. The screw has a reduced bugle head and high-low thread.



Technical Data Sheet
CE Marking
Service class 1
Phosphated
Indoor
RDWF main image.jpg

Product Details

Images

RDWF install image.jpg

Features

Material

Steel - Grey phosphate coating

Benefits

  • CE marked to EN14566
  • Reduced bugle head
  • Sharp point
  • High-low thread with reverse thread
  • Driver bits included (BIT2PE)

Application

Support

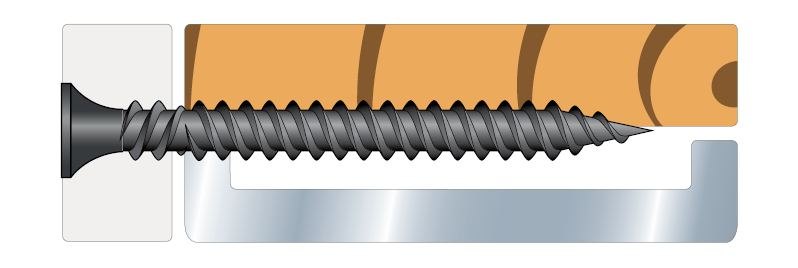

  • For use with drywall or dense drywall board

Common Applications

  • Fixing drywall to timber
  • Fixing drywall to steel up to 1.2mm thick

Technical Data

Dimensions

RDWF dim image.jpg

Product Dimensions UK

References Fastener dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l
RDWF40BE6.54.2403025002500 - 4000QDPRO51E / QD76KE

Certification

Declaration of Performance (DoP)

uk-dop-h10-0010-pdf.pdf (30.08 KB)
