DWFSD

DRYWALL to Steel Screw

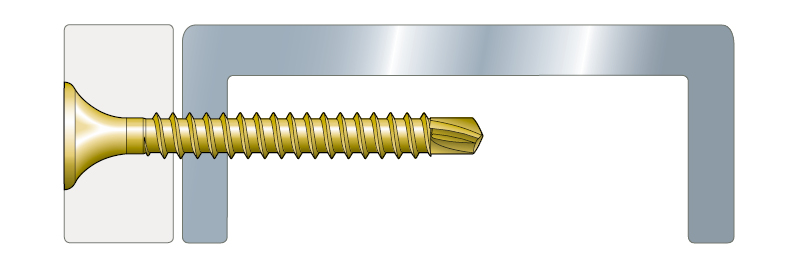

DWFSD is a self drilling screw with a fine thread, designed to fix drywall panels to steel of thicknesses 1.2 mm to 2.2 mm.

Technical Data Sheet

CE Marking

Service class 1

Yellow electro-galvanised steel

Indoor

Product Details

Images

Features

Material

Steel - yellow zinc plated

Benefits

CE marked to EN14566
Bugle haed
Drill point
Fine thread
PH2 driver bits included (BIT2PE)

Application

Support

Suitable for fixing to 1.2 - 2.2 mm steel

Common Applications

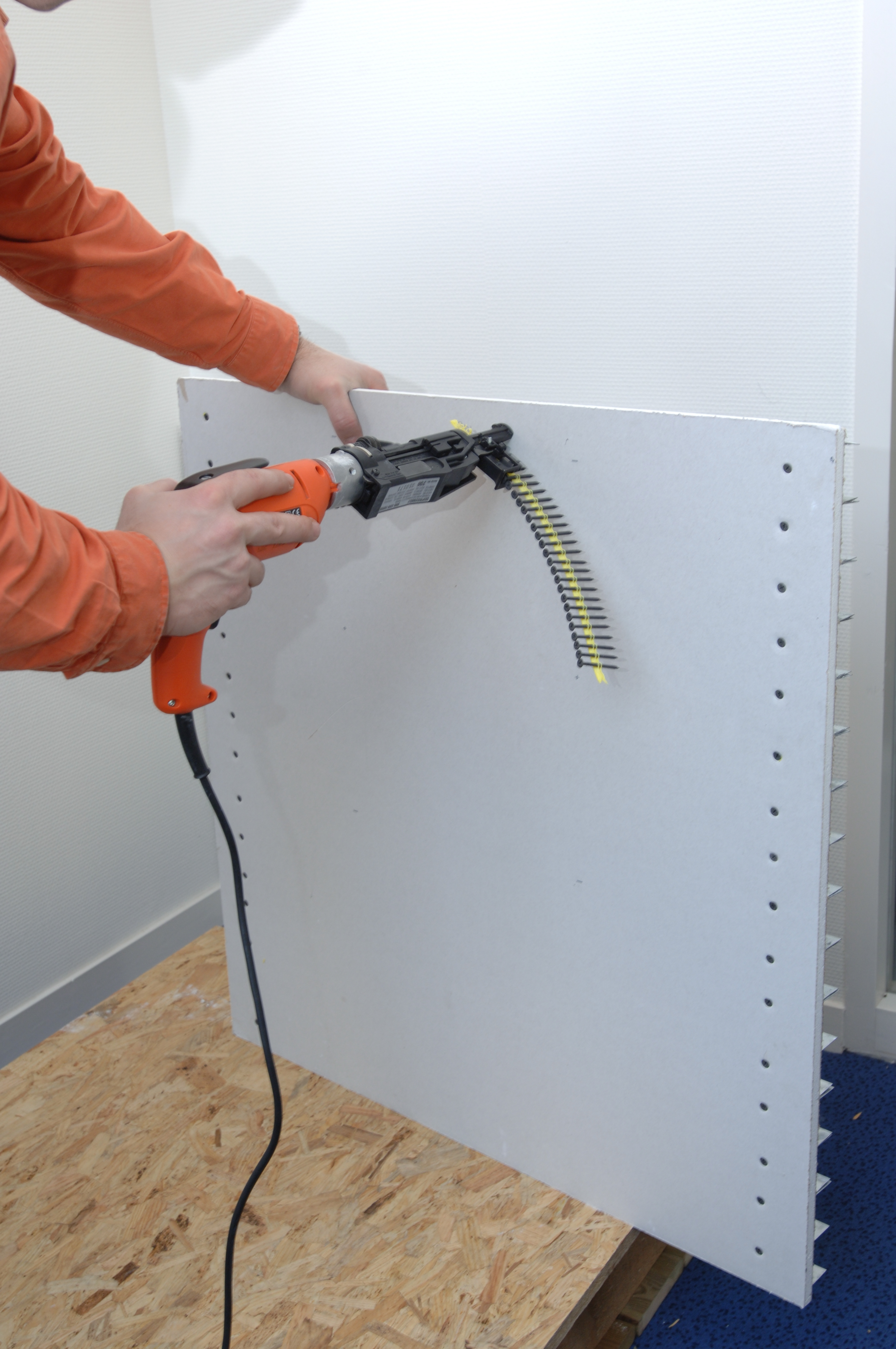

Fixing drywall board to steel

Technical Data

Dimensions

Product Dimensions UK

References	Fastener dimensions [mm]			Qty per Strip	Qty per Box	Recommended RPM	Quik Drive Attachment
References	d_h	d	l	Qty per Strip	Qty per Box	Recommended RPM	Quik Drive Attachment
DWFSD32PE	8.2	3.5	32	30	2500	2500	QDPRO51E / QD76KE
DWFSD41PE	8.2	3.5	41	30	2500	2500	QDPRO51E / QD76KE
