FHSD

FHSD MEZZANINE FLOOR Screw

FHSD is a ribbed head screw with a winged drill point suitable for wood to light gauge steel installations such as mezzanine floors.

Technical Data Sheet
Service class 2
Yellow electro-galvanised steel
Indoor

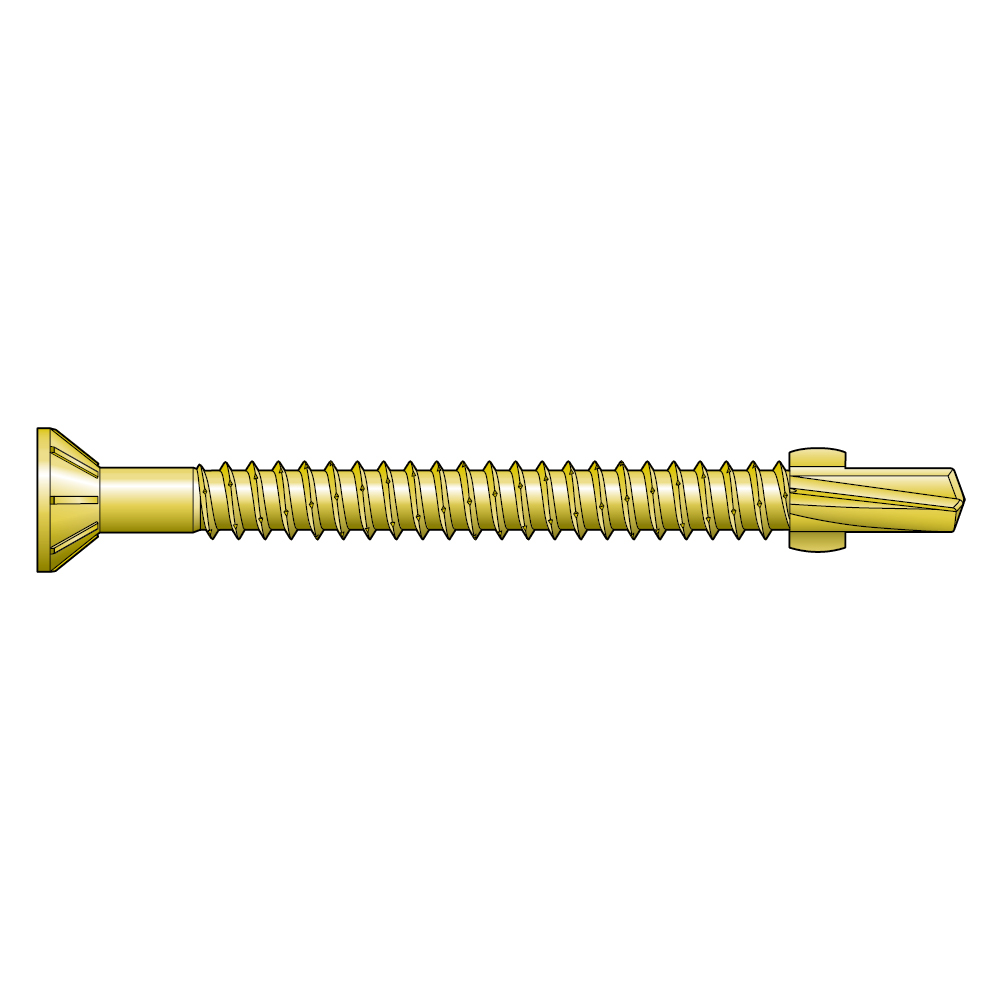

FHSD-WING main image.jpg

Product Details

Images

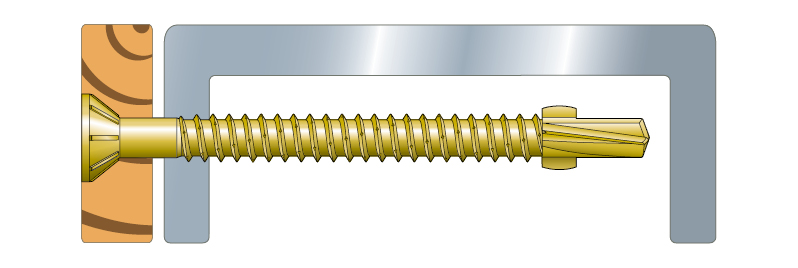

FHSD-WING install image.jpg

Features

Benefits

  • Wood to light gauge steel (2.0 to 4.0 mm thickness) application
  • Winged drill point to help clear hole and penetrate steel
  • Bit (BIT3SE) included
  • Countersunk head with ribs


Material

  • Yellow zinc dichromate finish

Application

Suitable for:

  • Mezzanine floors with a steel thickness of 2 to 4mm
  • Use with Quik Drive tool QDHSD60 or QDHSD75

Technical Data

Dimensions

FHSD-WING dim image.jpg

Product Dimensions UK

References Fastener dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l
FHSD45E9.95.445237501000-2500QDHSD60E / QDHSD75E
FHSD64E5.464237501000-2500QDHSD60E / QDHSD75E

Capacities

References Characteristic capacities [kN]
Withdrawal Shear Head pull-through (timber >15mm)
Steel thickness [mm] Steel thickness [mm]
2 3 4 5 2 3 4 5
FHSD45E36.27.210.62.12.11.61.91.3
FHSD64E36.27.210.62.12.11.61.91.3
