FBCS

Fibre Cement Screw

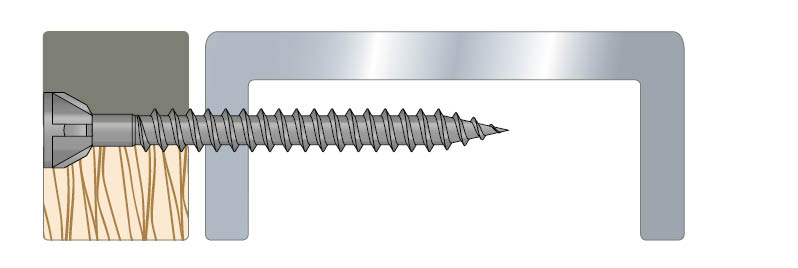

FBCS screws are used in humid conditions both indoor and outdoor thanks to the impressive Impreg®+ coating. They are particularly suited for fixing fibre cement boards to timber. They are also suitable for timber to timber applications. The sharp point means that the screws can also be used to fix to light gauge steel up to 1mm thick. The ribbed countersunk flat head countersinks flush into the cement board/timber leaving a neat finish. FBCS screws are CE marked to EN14566 and have a PH2 drive recess.

Available as loose screws or flat belt collated for standard autofeed screwdrivers.

CE Marking
Service class 2
Impreg® +
Outdoor

Product Details

Images

Features

Material

Steel - Impreg®+ coating

Features

  • CE marked to EN14566
  • PH drive
  • Twin thread
  • Ribbed countersunk head
  • Sharp point
  • Impreg®+ coating

Application

Common Applications

  • Fibre cement board to timber
  • timber to timber
  • Can also be used to fix to steel up to 1mm thick

Technical Data

Product Dimensions

References Item code Fastener Dimensions [mm] Driver Bit Box Quantity

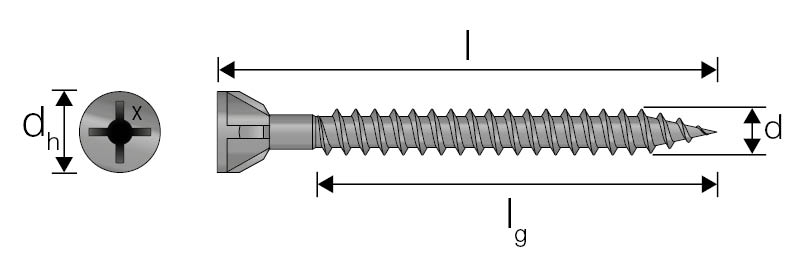

d l dh lg
FBCS3.9X25754533.9256.818PH2250
FBCS3.9X3575454356.828PH2250

FBCS Collated Screws

References Item code Fastener Dimensions [mm] Driver Bit Box Quantity
d l dh d1 lg tfix
FBCS3.9X25 Collated757193.9256.82.41815PH21000
FBCS3.9X35 Collated757203.9356.82.42826PH21000

* Flat tape collated for standard auto-feed screwdrivers
Also available Quik Drive collated
