Technical Data

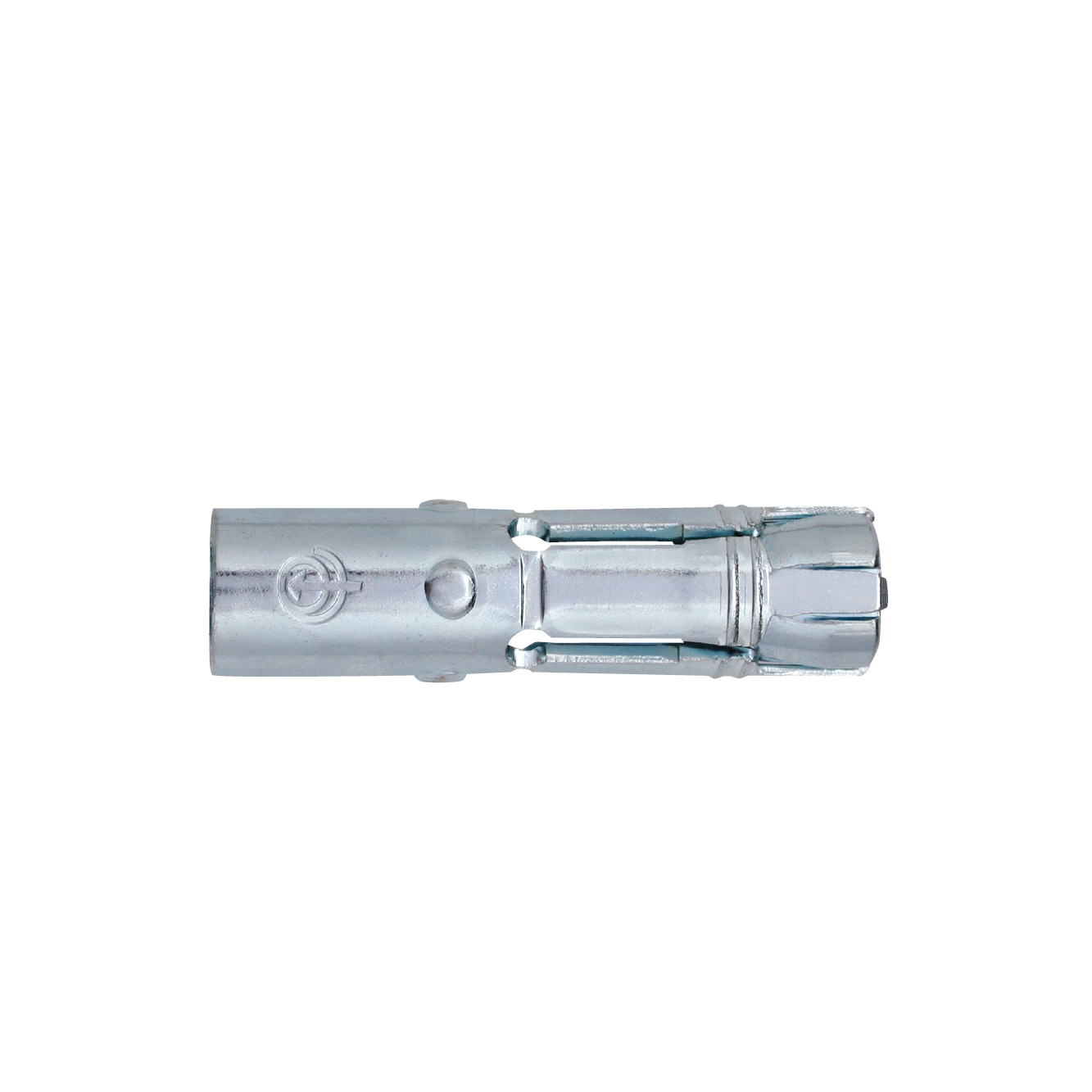

Product Dimension - Anchor only
| References | Product information | ||||
|---|---|---|---|---|---|
| Product reference | Plug [Ø x L] | For screw | Pkg. | Outerbox | |
| 74400B1004000 | FM-744 | 10x40* | M6 | 50 | 500 |
| 74400B1405000 | FM-744 | 14x50* | M8 | 50 | 500 |
| 74400B1606000 | FM-744 | 16x60* | M10 | 25 | 250 |
| 74400B2008000 | FM-744 | 20x80* | M12 | 20 | 200 |
* Certified product when coupled with hex head screw DIN933 grade 8.8 and washer DIN125-1
Product Dimension - Hex head screw grade 8.8
| References | Product information | ||||
|---|---|---|---|---|---|
| Product reference | Plug [Ø x L] | Hex head screw [Ø x L] | Pkg. | Outerbox | |
| 74411B1004000 | FM-744 | 10x40 | M6x50 | 50 | 500 |
| 74411B1405000 | FM-744 | 14x50 | M8x60 | 50 | 250 |
| 74411B1606000 | FM-744 | 16x60 | M10x80 | 25 | 125 |
| 74411B2008000 | FM-744 | 20x80 | M12x90 | 20 | 100 |

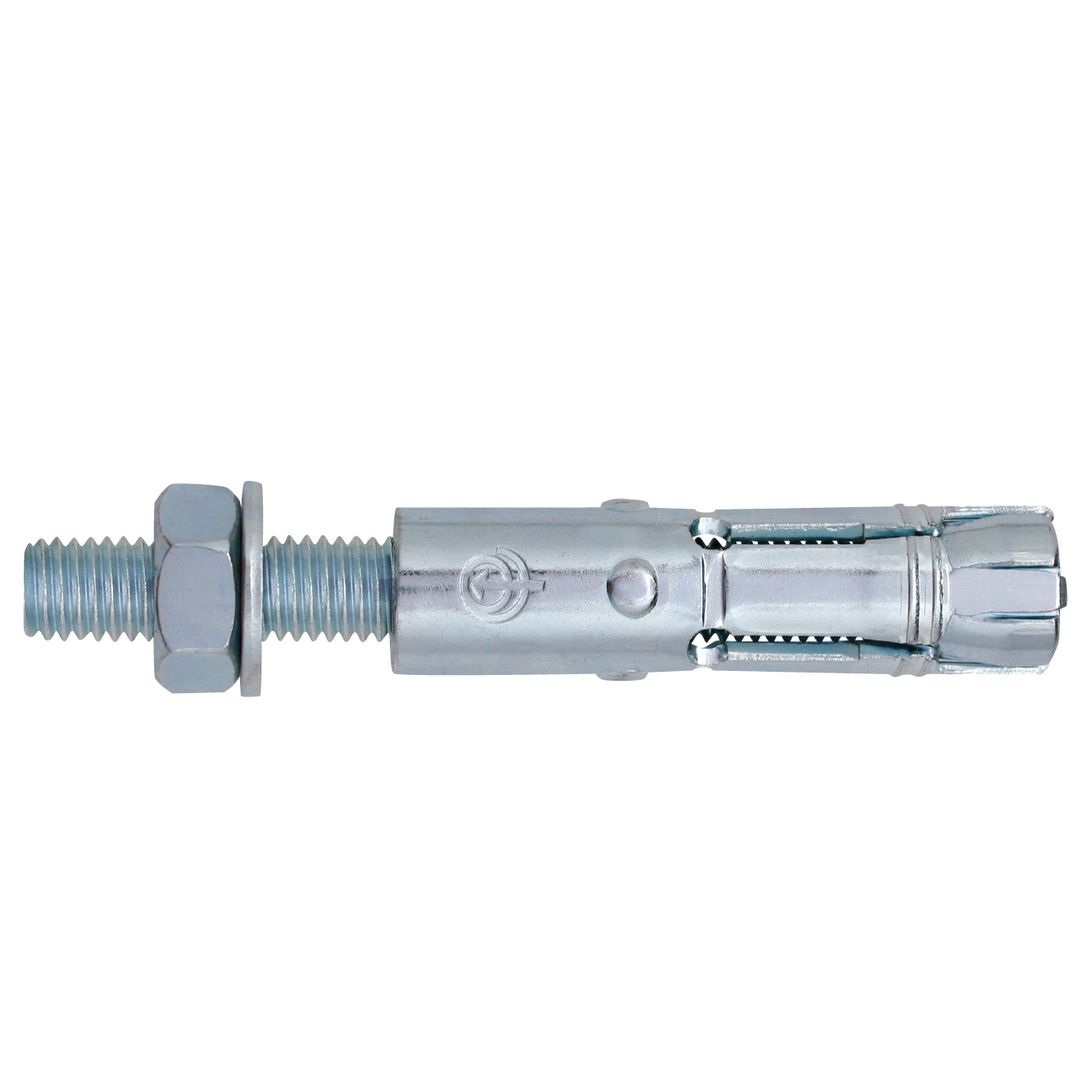

Product Dimension - Threaded bar grade 5.8
| References | Product information | ||||
|---|---|---|---|---|---|
| Product reference | Plug [Ø x L] | Bar [Ø x L] | Pkg. | Outerbox | |
| 74412B1004000 | FM-744 | 10x40** | M6x65 | 50 | 500 |
| 74412B1405000 | FM-744 | 14x50** | M8x75 | 50 | 250 |
| 74412B1606000 | FM-744 | 16x60** | M10x95 | 25 | 125 |
| 74412B2008000 | FM-744 | 20x80** | M12x115 | 20 | 100 |
** Not covered by CE certification

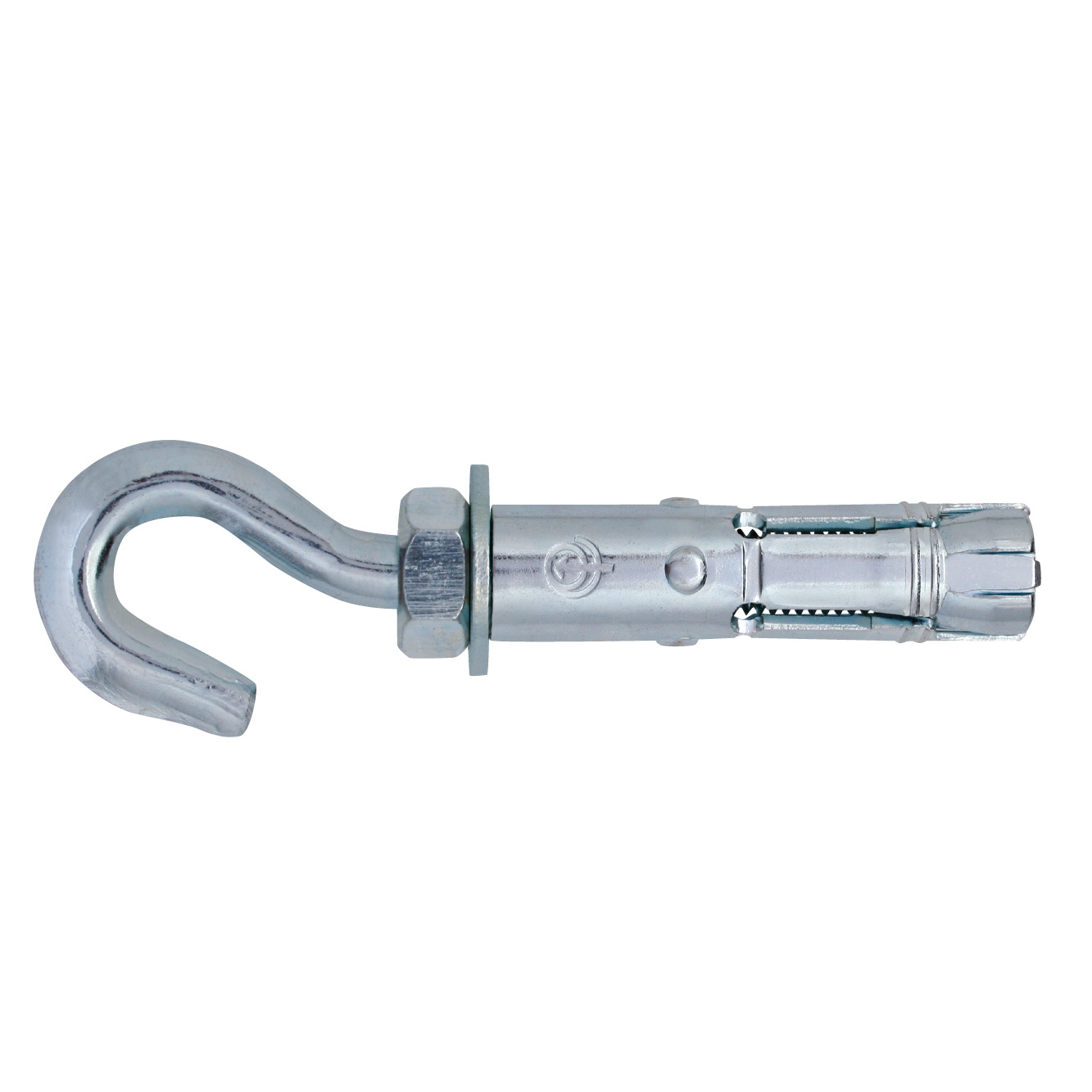

Product Dimension - Forged cup hook
| References | Product information | |||||
|---|---|---|---|---|---|---|
| Product reference | Plug [Ø x L] | Cup hook | Int. cup hook [Ø] | Pkg. | Outerbox | |
| 74413B1004000 | FM-744 | 10x40** | M6 | 9,5 | 50 | 500 |
| 74413B1405000 | FM-744 | 14x50** | M8 | 11 | 50 | 250 |
| 74413B1606000 | FM-744 | 16x60** | M10 | 14 | 25 | 125 |
| 74413B2008000 | FM-744 | 20x80** | M12 | 16 | 20 | 80 |
**Not covered by CE certification

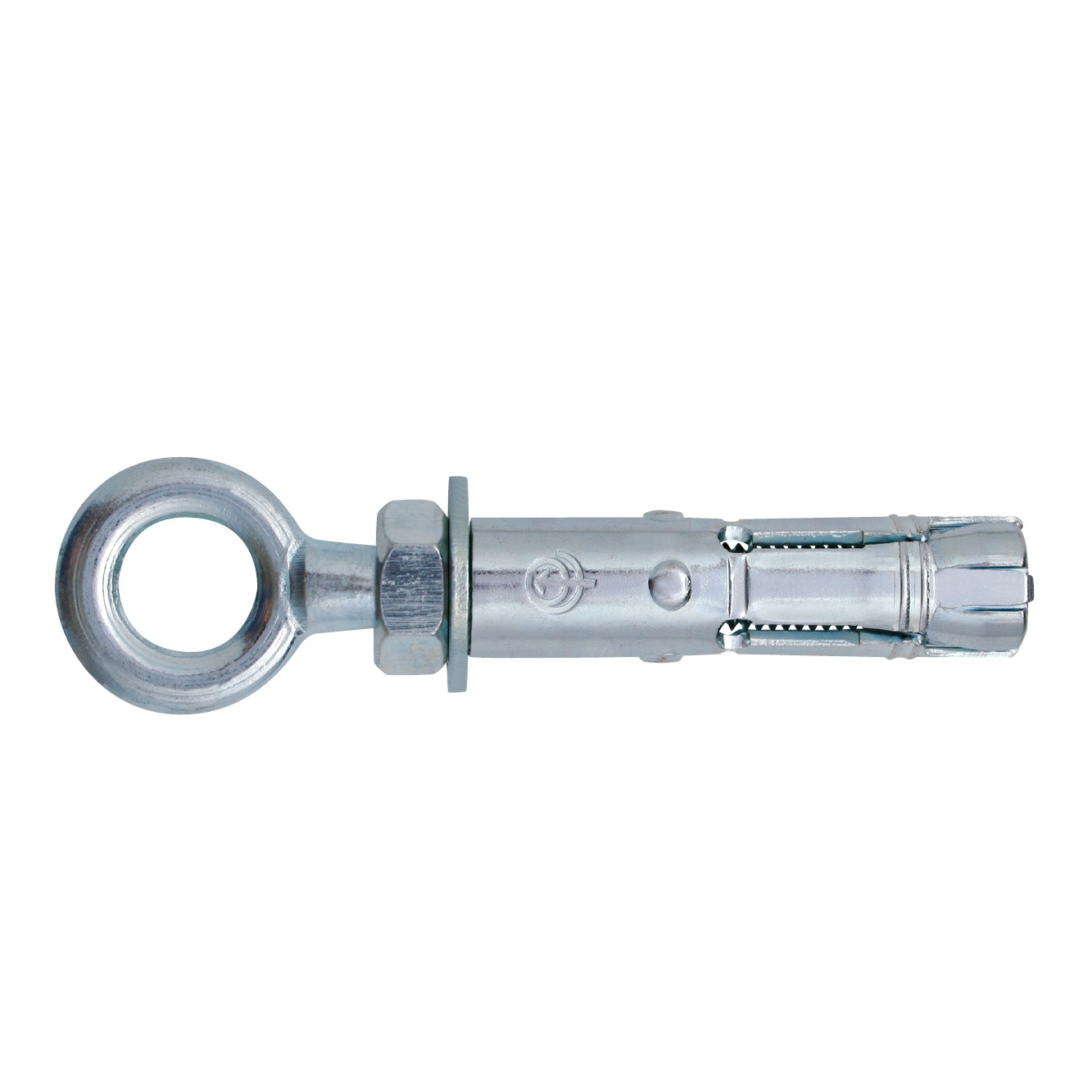

Product Dimension - Forged eye
| References | Product information | |||||
|---|---|---|---|---|---|---|
| Product reference | Plug [Ø x L] | Eye | Int. eye [Ø] | Pkg. | Outerbox | |
| 74414B1004000 | FM-744 | 10x40** | M6 | 10 | 50 | 500 |
| 74414B1405000 | FM-744 | 14x50** | M8 | 11,5 | 50 | 250 |
| 74414B1606000 | FM-744 | 16x60** | M10 | 14,5 | 25 | 125 |
| 74414B2008000 | FM-744 | 20x80** | M12 | 17 | 20 | 80 |
**Not covered by CE certification
