Connectors for Masonry, Timber and Steel Construction
Timber Connectors
55L

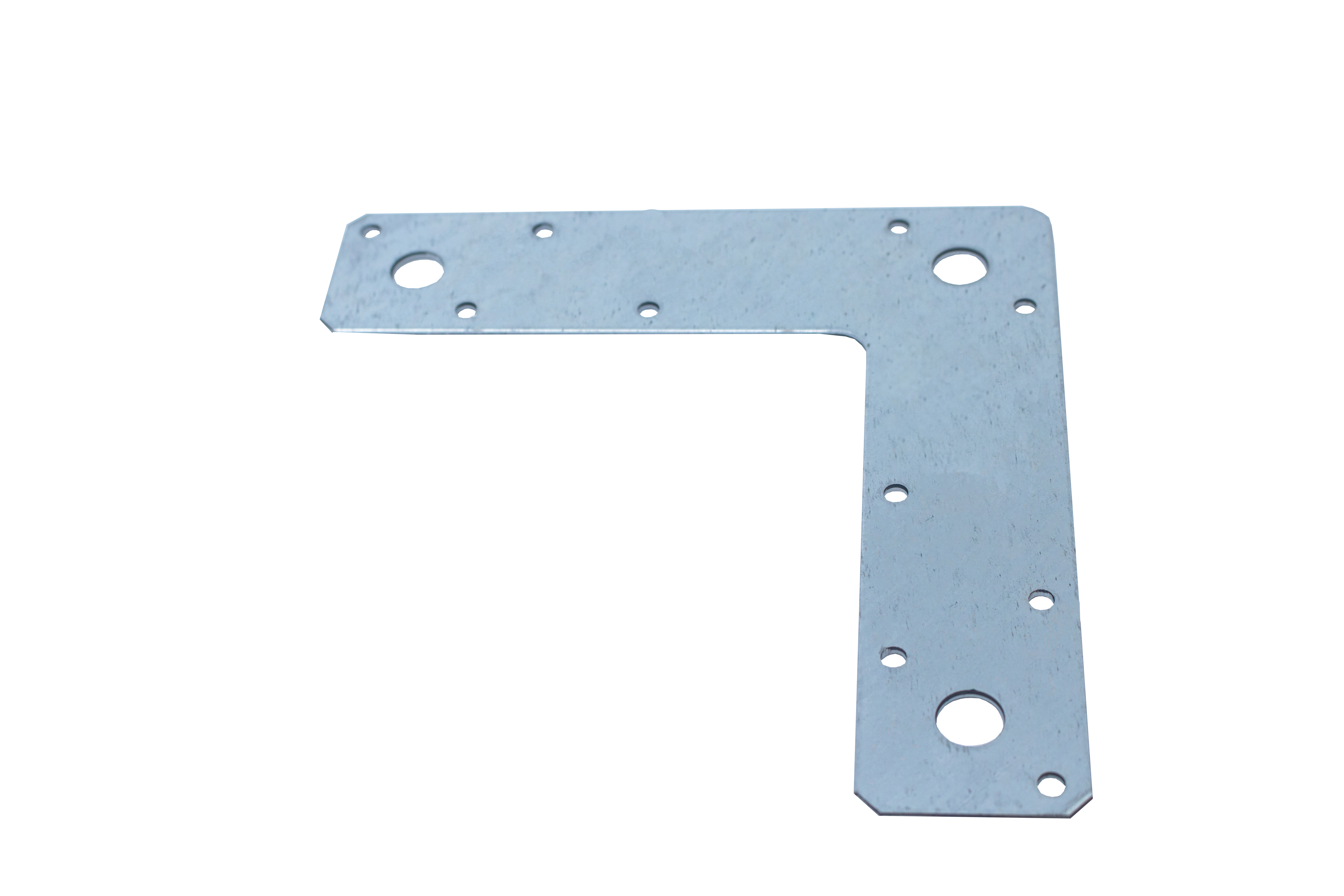

L Flat

''L'' shaped bracket

Technical Data Sheet
Service class 2
Indoor
Electrogalvanized steel Z275

Product Details

Images


Features

Material

  • Pre-galvanised mild steel

Benefits

Reinforce timber structures.

Application

Header member

• Wood on wood

Applications

• Designed for home and garden

Technical Data

Dimensions

C_55L_ProdIll_Ill_Prod_EU_FR_CY

Dimensions

References Dimensions [mm] Perçages Box Quantity
A B C t Ø4.0 Ø4.3 Ø11
55L120120321.55--100

Installation

Installation

Fixing

  • Vis autoforeuses SD8 4,0x32 mm,
  • Pointes annelées CNA 3,7x50 mm,
  • CNA 3,1x3,5 mm.

Installation

  1. Approcher l'élément à fixer du support.
  2. Pointer la ferrure sur l'élément à fixer.
  3. Pointer la ferrure sur le support bois.

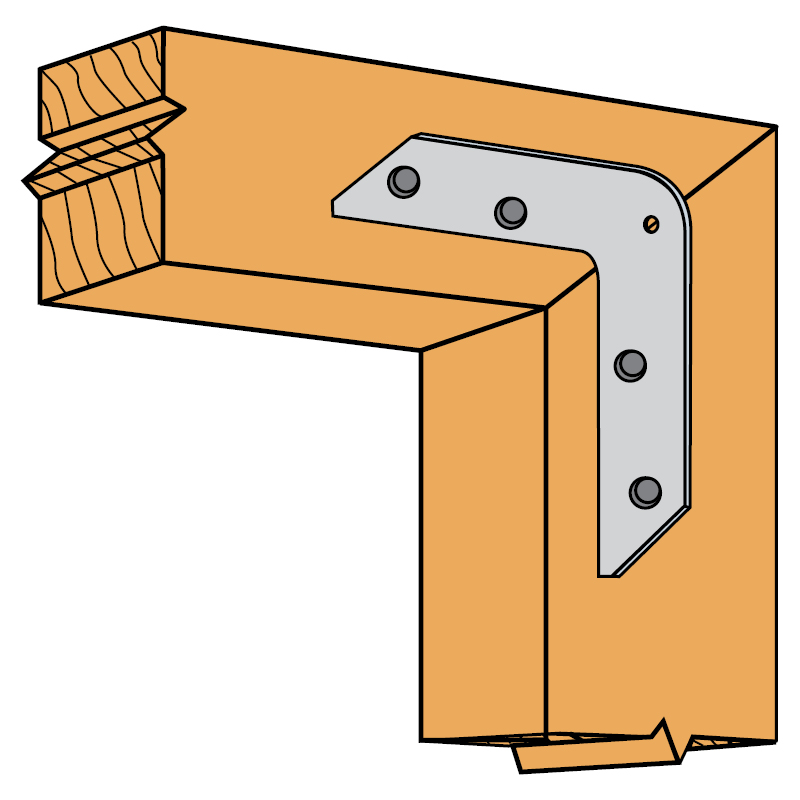

55L-situation
Fixation à 90° avec 55L
