PWR

Partition Wall Restraint

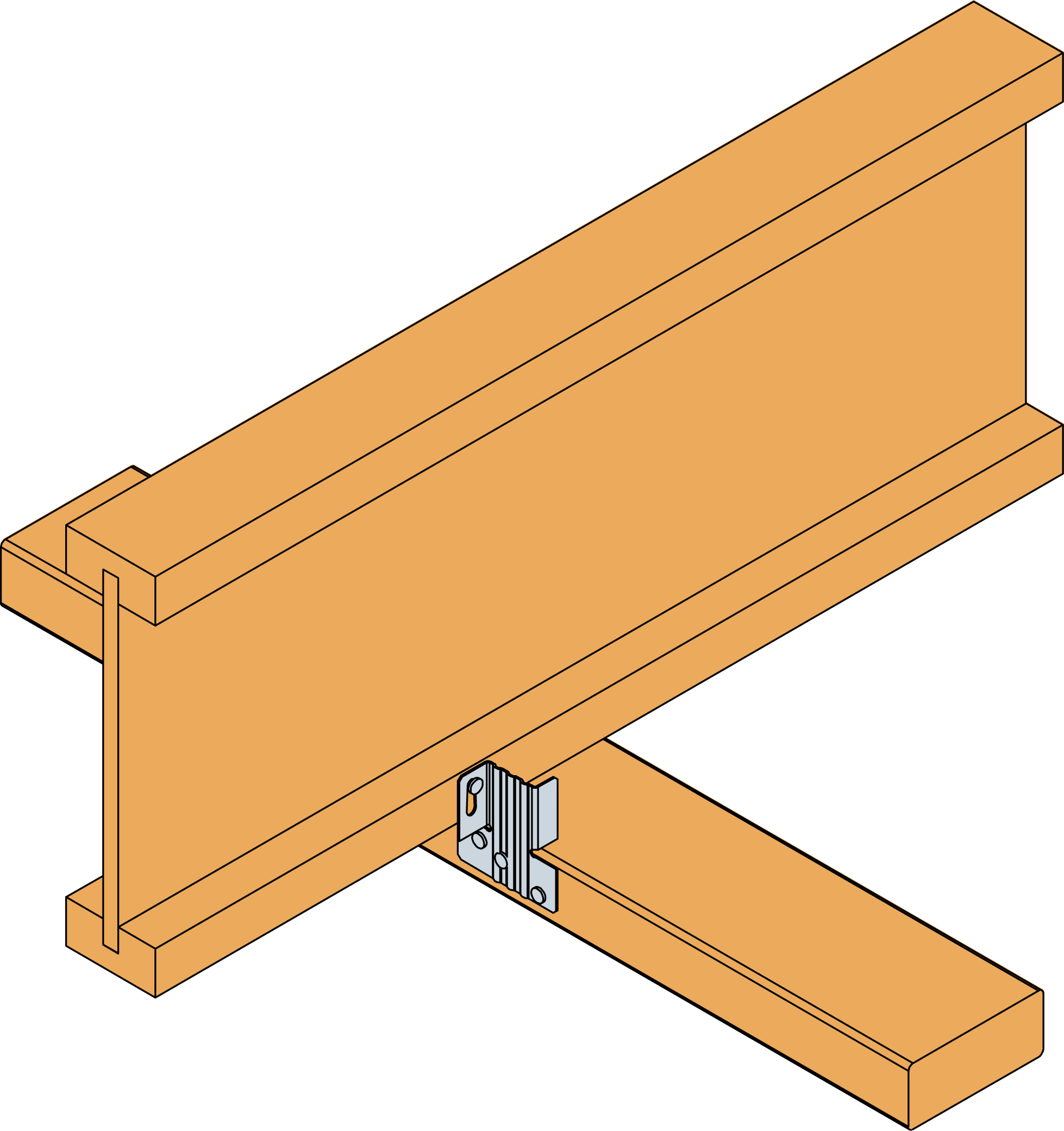

The PWR connector is used to laterally restrain the top of a non-load bearing
partition wall by connecting it to the floor joists above. The tapered slot allows for
joist deflection when it is loaded, while still restraining the partition wall.


• Provides lateral restraint to non-load bearing partition walls.
• Allows joist deflection.

Technical Data Sheet

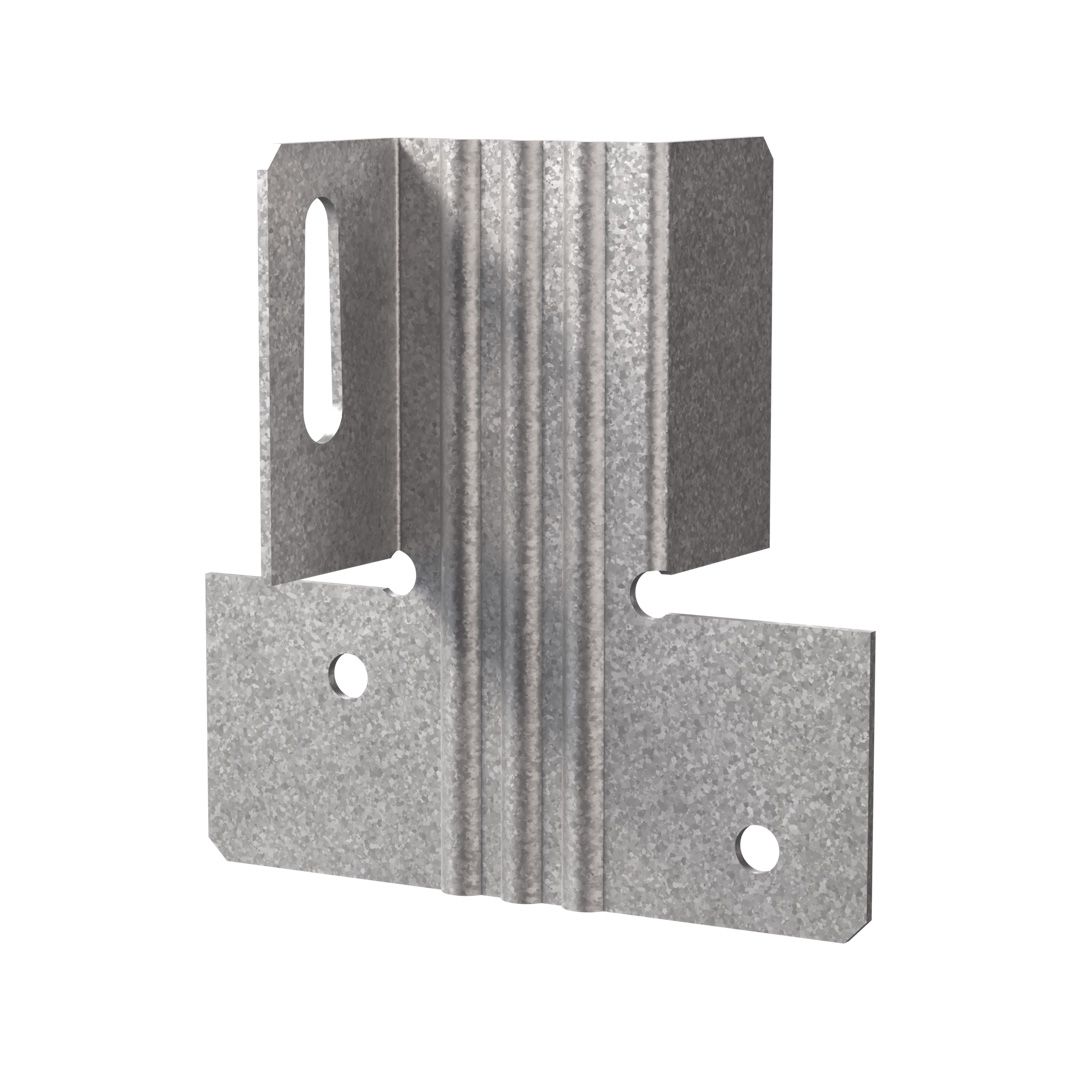

PWR main image

Product Details

Images


Features

Material

  • Pre-galvanised mild steel

Technical Data

Dimensions


Dimensions & Performance Values

References Dimensions and drill holes [mm] Fixing
A B C D E Thickness Flange A Flange D

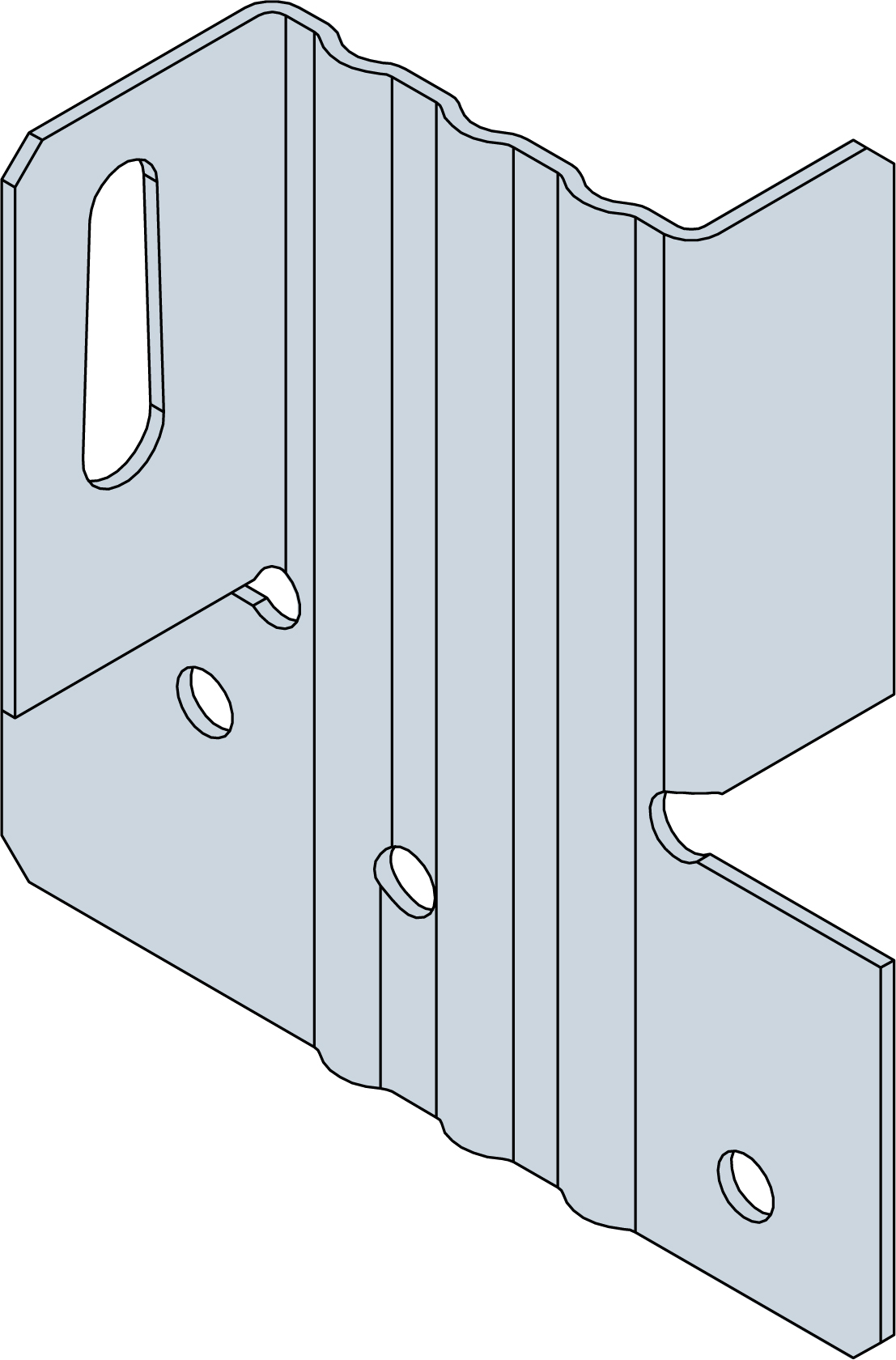

Ø4.1 Tapered Slot
PWR156536652015131
  1.    3.75x30 refers to a Galavanised or Sheradised Square Twist Nail

Performance Values

References Fasteners Safe Working Loads [kN]
Flange A Flange D R4,SWL, Short Term
N3.75x30
PWR15310.5

Installation

Installation

Installation

  • Position the connector on top of the header rail and against the floor joist.
  • Secure the connector to the header rail with the specified fasteners.
  • The bottom of the location tab should sit on the top of the header rail.
  • Secure the connector to the joist with the specified fasteners, allowing a 1-2mm gap between the underside of the fastener head and the PWR connector.
  • The fastener MUST be installed at the top of the tapered slot as this allows for the deflection of the joist.
  • Maximum gap between the partition and the joist is 15mm.
  • PLEASE NOTE:  The fastener into the joist  MUST be hand nailed to ensure the gap between the underside of the nail head and the PWR connector is maintained



  •

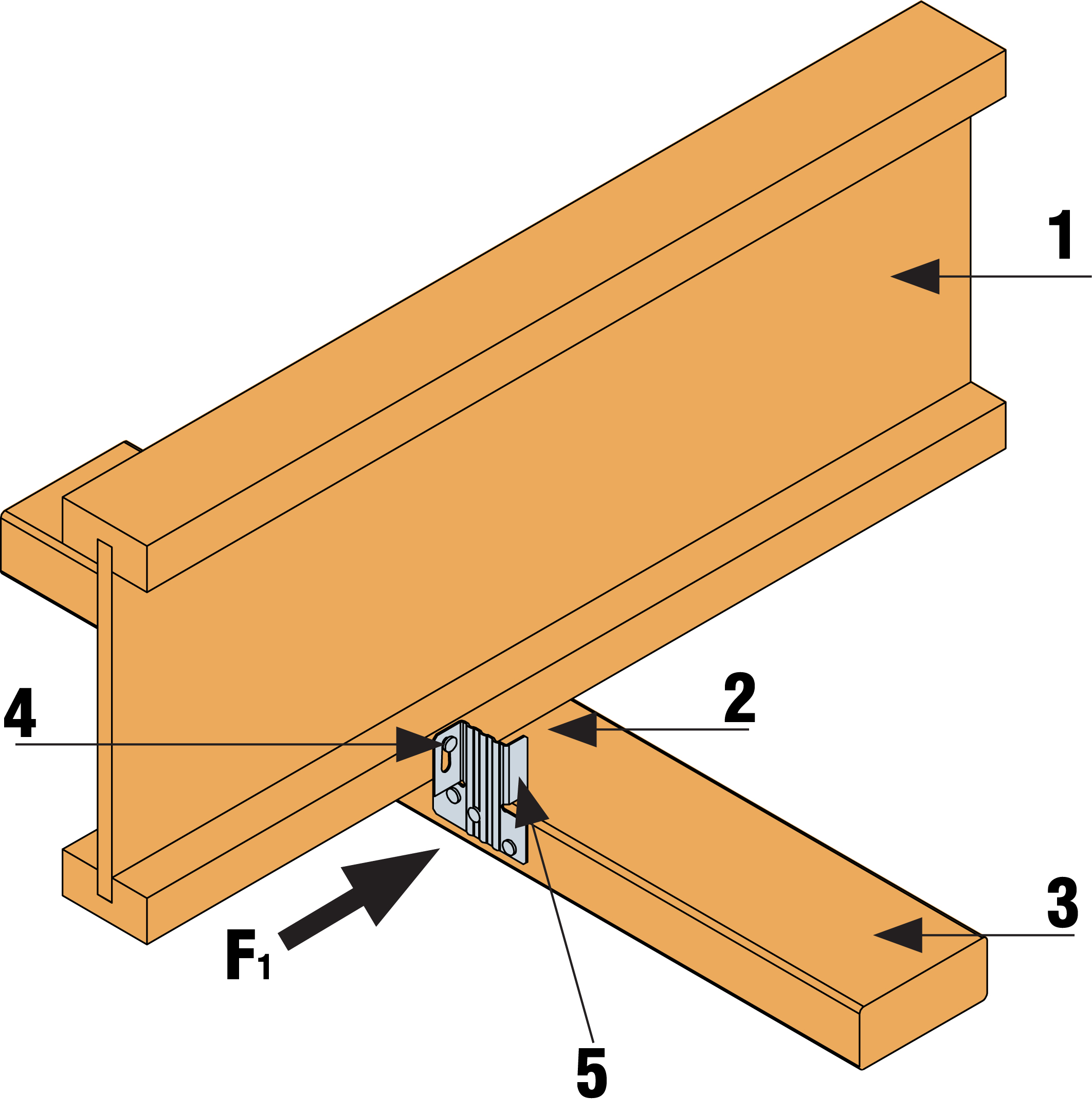

1. Floor Joist 2. 15mm gap between joist and header rail. 3. Header Rail of partition 4. 1-2mm gap between fastener head and connector. 5. Location Tab.
