Nails and Screws
Quik Drive Collated Screws
SSDHPD

Screws for hard wood deck on soft joist

Quick Drive® screw SSDHPD A2 is an efficient and fast solution for screwing hardwood deck boards on soft joist.

Technical Data Sheet
Service class 3
Stainless steel A2
Outdoor

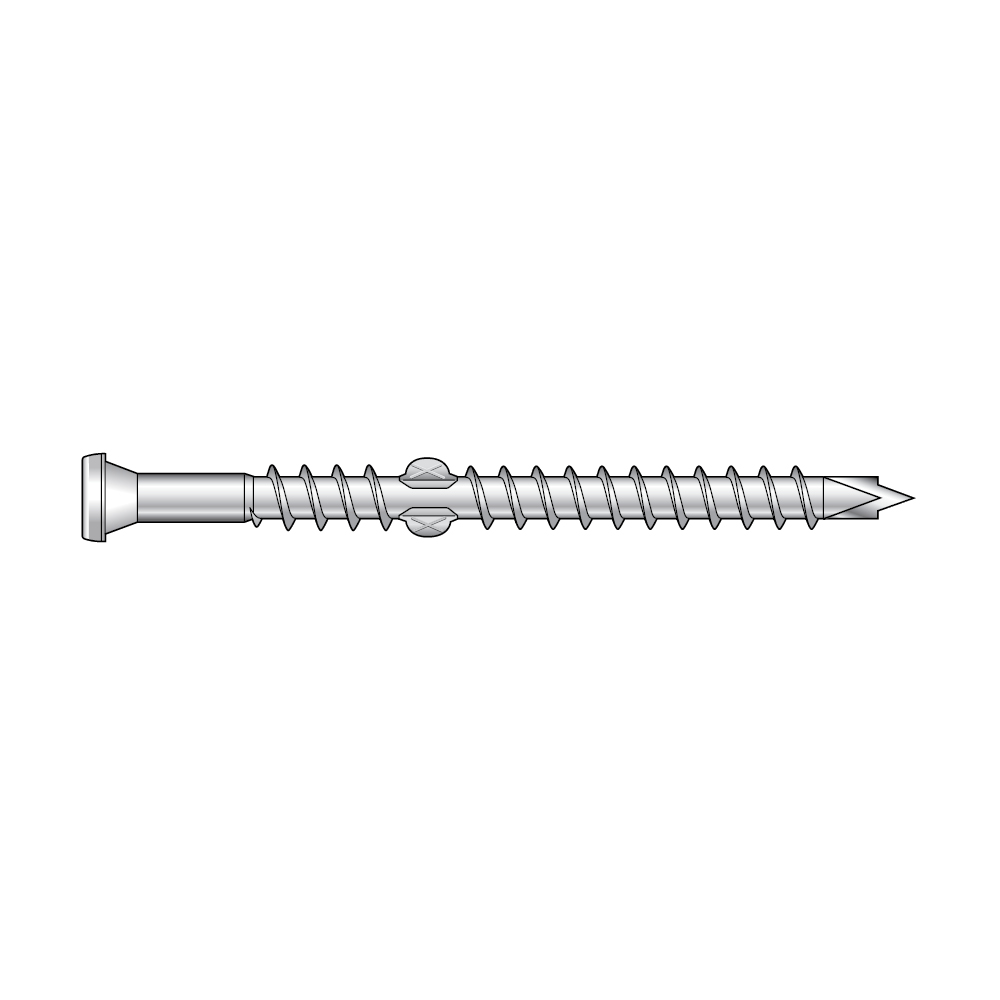

SSDHPD main image.jpg

Product Details

Images

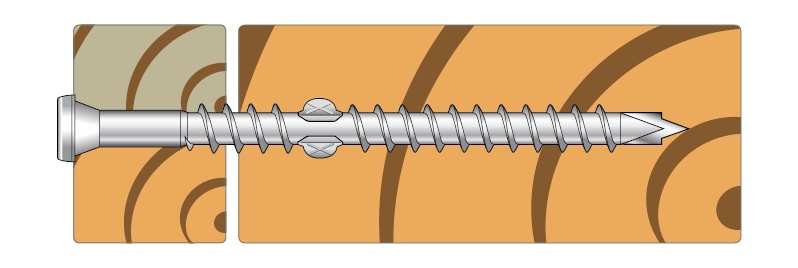

SSDHPD install image.jpg

Features

Material

  • 305 Stainless steel.

Benefits

  • Paddle point to penetrate the hardest wood products without predrilling (densitty <800kg/m3)
  • Compact cap head ensures a low-profile installation and reduced visibility
  • Wings on the shaft counter-bore hard material and allow the head to countersink for a clean look
  • Bit (BIT2S) included
  • Collated to be used with Quick Drive® system for a confortable and efficient use.

Application

Header member

  • Wood to wood.

Applications

  • Exotic/hard wood deck board on soft joist.

Technical Data

Dimensions

SSDHPD dim image.jpg

Dimensions and caracteristics values

References Largeur tête [mm] Ø tête [mm] Longeur vis [mm] Nb. vis/bande Nb. vis/carton Outils compatibles Vitesse de rotation max. [tr/min]
SSDHPD64E6.9564301000QDPRO64 / QD76 / QDPRO76S2500

Related Products

ZIP Packages

Buy from Distributor

No items available.
