E1B

Self-Drilling Screw

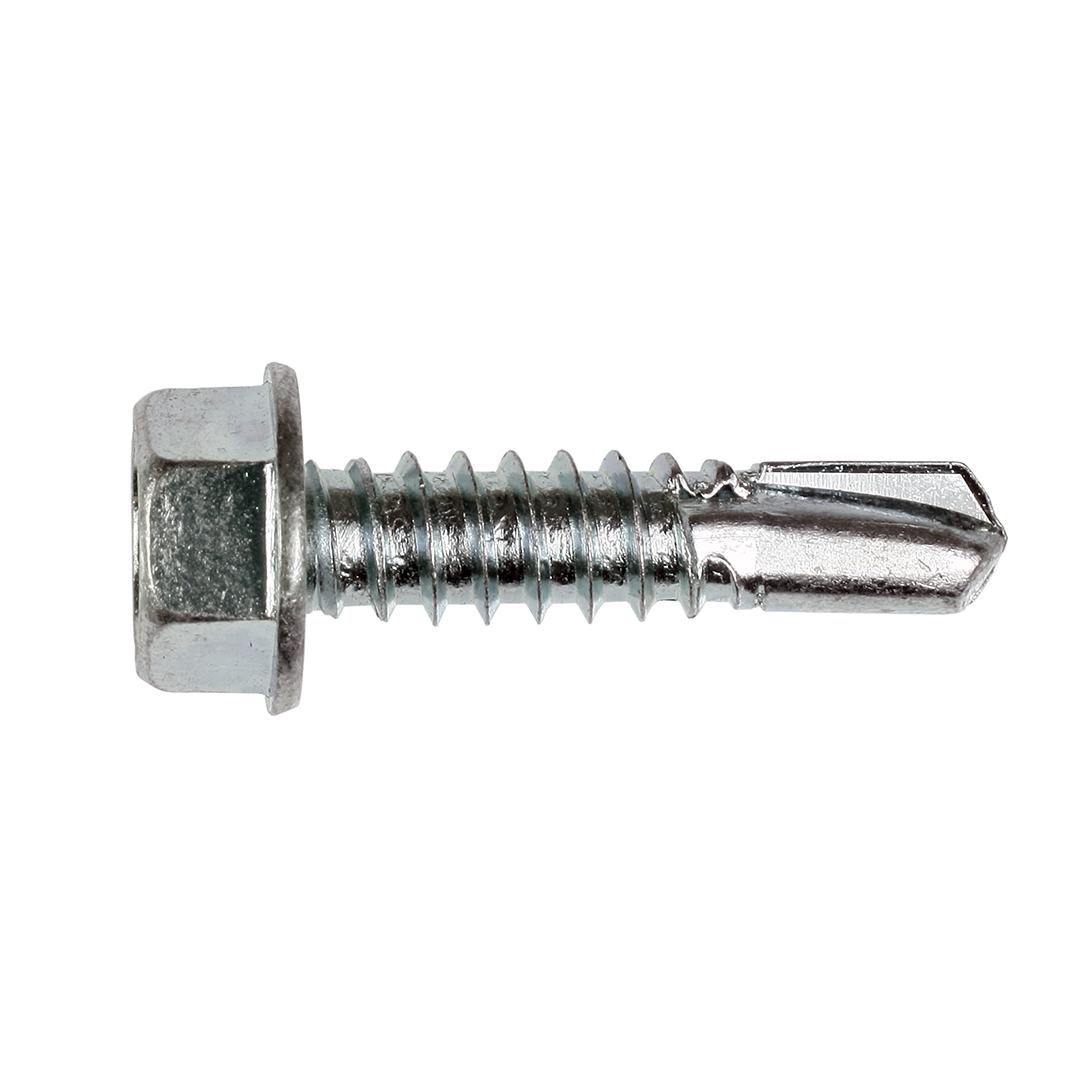

The E1B is a 6.1mm diameter self-drilling screw with a #3 drill point and hex washer head. The drill point allows the screw to penetrate the steel without the need for a pilot hole. Suitable for use with hold downs such as S/HDS.

Driver bit not included.

Service class 1
Electrogalvanized steel 5µm
Indoor

Product Details

Features

Material

Steel - Clear zinc coating

Features

  • 6.1mm x 25mm
  • 3/8" hex washer head
  • 12.2mm integral washer
  • #3 drill point

Application

Common Applications

Recommended for use with certain Simpson Strong-Tie connectors for fixing to steel up to 8mm max.



Technical Data

Product Dimensions

References Fastener dimensions [mm] TPI Drill Point Box Quantity
Head dw d l
E1B1414B/13/8" Hex12.26.12514#31
E1B1414B3/8" Hex12.26.12514#32500

Performance Values

References Performance Values [kN] / Member Thickness [mm]
Shear Tension
Safe Working Loads [kN] Characteristic Loads [kN] Safe Working Loads [kN] Characteristic Loads [kN]
1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm]
E1B1414B1.32.7240.61.10.91.7
