SSWSCB

SSWSCB TILE ROOFING Screw, Coarse Thread

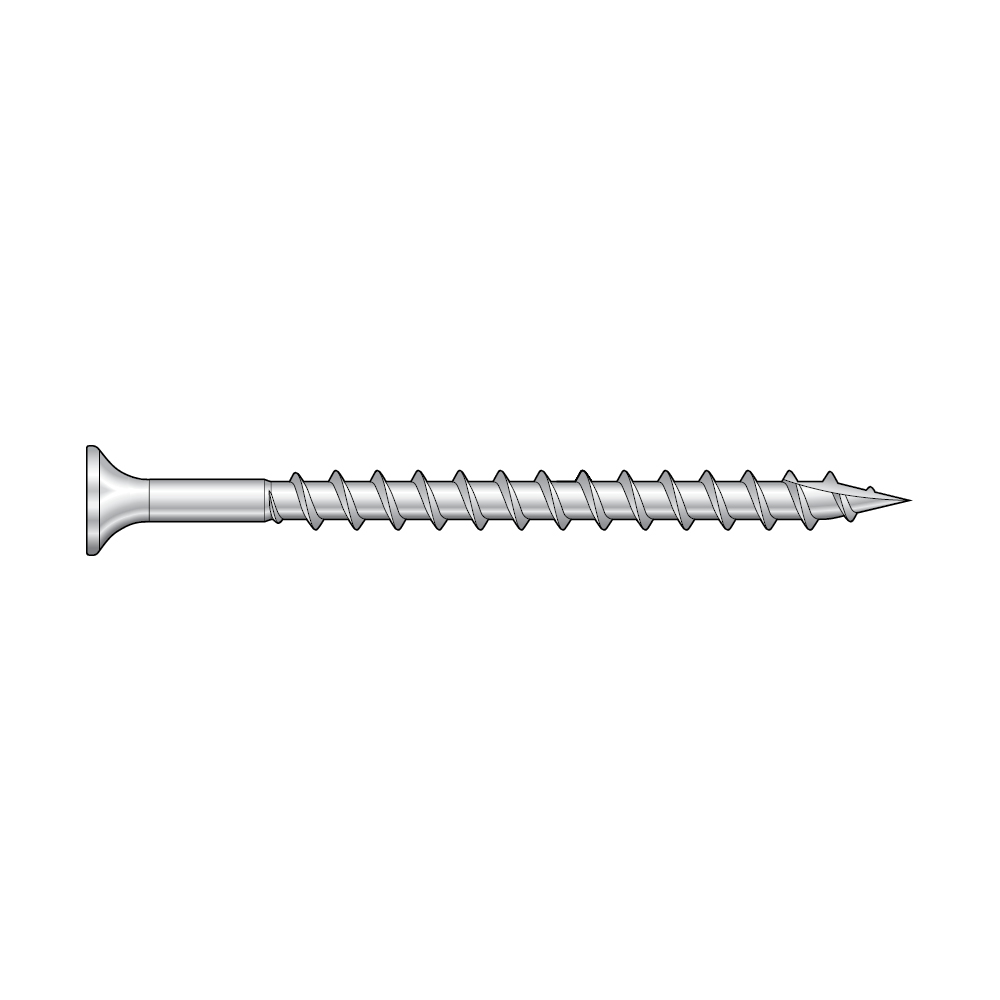

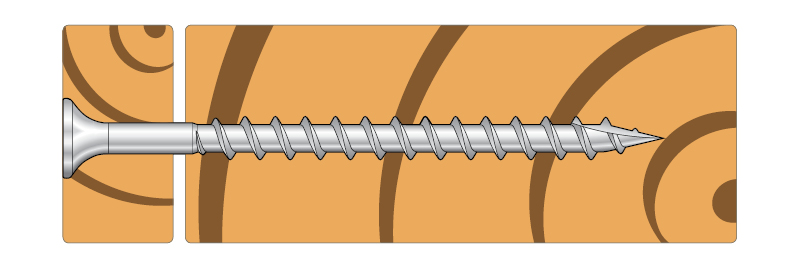

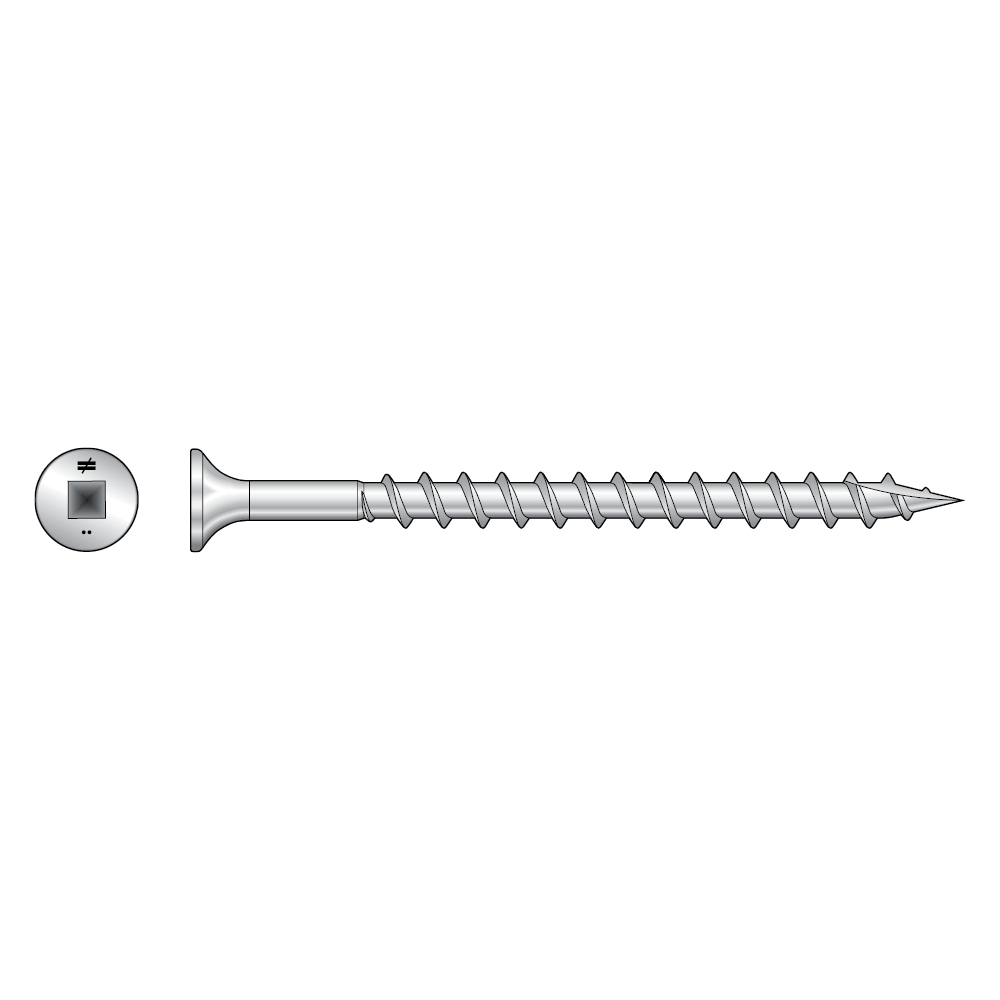

SSWSCB is a stainless steel screw with a bugle head, coarse thread and a type 17 point. It is ideally suited to fastening roof tiles to wood.

CE Marking
Service class 3
Stainless steel A2
Outdoor

Product Details

Images

Features

Material

  • Stainless steel A2

Benefits

  • Bugle head
  • Tapered point
  • Corrosion resistant material

Application

Header member

  • Softwood (Cedar, Spruce, Larch, Pine, Fir, Tsuga...)

Applications

  • Tile roofing

Technical Data

Dimensions

Dimensions and caracteristics values

References dimensions [mm] Qty screws/strip Qty screws/box Compatible tools Max rotation speed [tr/min] Max rotation speed - DE [U/Min.] Compatible tools - DE
dh d l
SSWSCB64E8.54.664301500QDPRO64 / QD76 / QDPRO76S25002500QDPRO64 / QD76 / QDPRO76S

Mechanical Properties (EN14592)

References Characteristic moment of elasticity - My,k [My,k] [kNmm] Characteristic pullout parameter [fax,k] [N/mm²] Characteristic head traversal parameter [fhead,k] [N/mm²] Characteristic pulling capacity [ftens,k] [kN] Characteristic resistance to torsion - Rtor,k [ftor,k] [Nm]
SSWSCB64E2.614164.74.2

Certification

Declaration of Performance (DoP)

ZIP Packages
