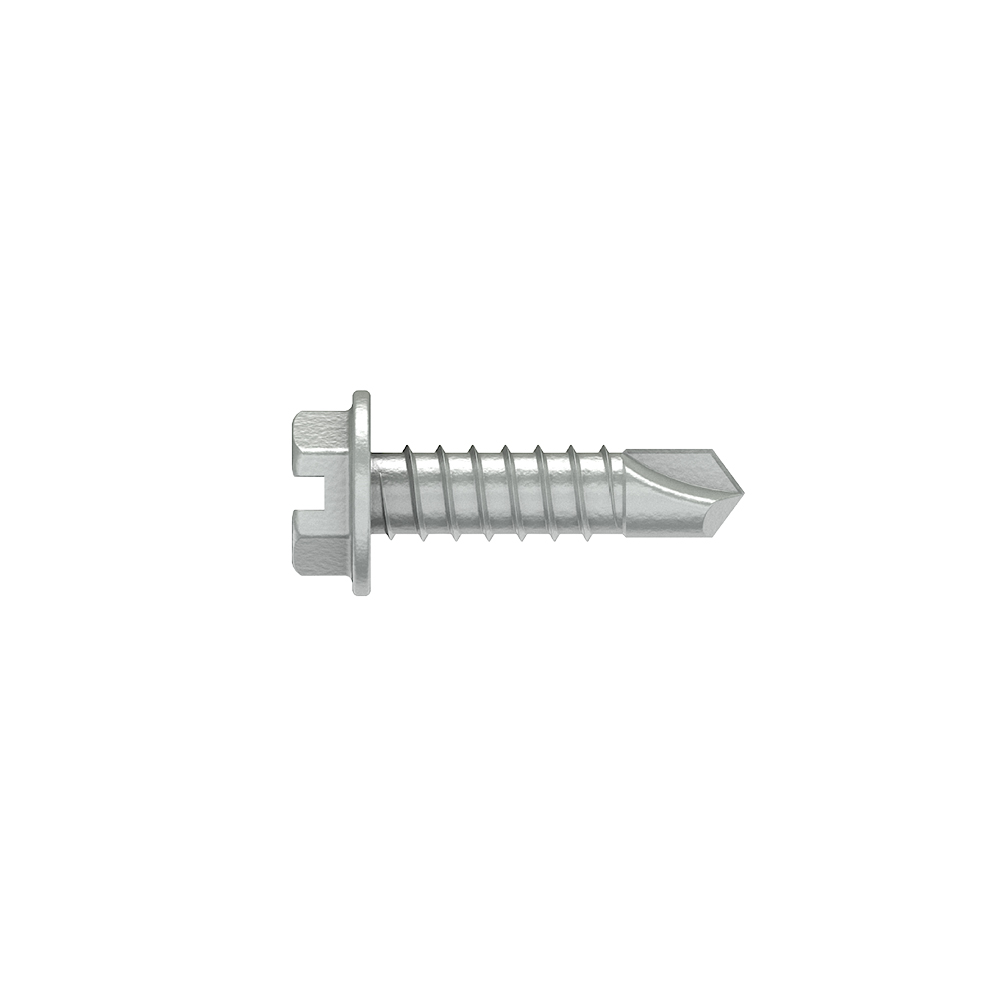

Steel to Steel Screw - Drill Point
Self-drilling screw used to fix sheet metal to sheet metal, for example when joining ventilation to ductwork. Suitable for material up to 2x2.0 mm.
Service class 1
Electro-galvanized steel
Indoor
Product Details
Images
Features
Application
Technical Data
Dimensions
Product Dimensions
| References | Item Code | Tun / DB nr. | NOB nr. | Fastener dimensions [mm] | Qty/box | ||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | bit | |||||
| HSB4.2X13 | 74392 | 1949887 | 53293312 | 4.2 | 13 | 8.5 | 3.6 | 1/4" + PH2 | 1000 |
| HSB4.2X19 | 74393 | 1949888 | 53293323 | 19 | 8.5 | 3.6 | 1/4" + PH2 | 1000 | |
| HSB4.2X25 | 74394 | 1949889 | 53293338 | 25 | 8.5 | 3.6 | 1/4" + PH2 | 1000 | |
