CHB

Timber to Timber Screw

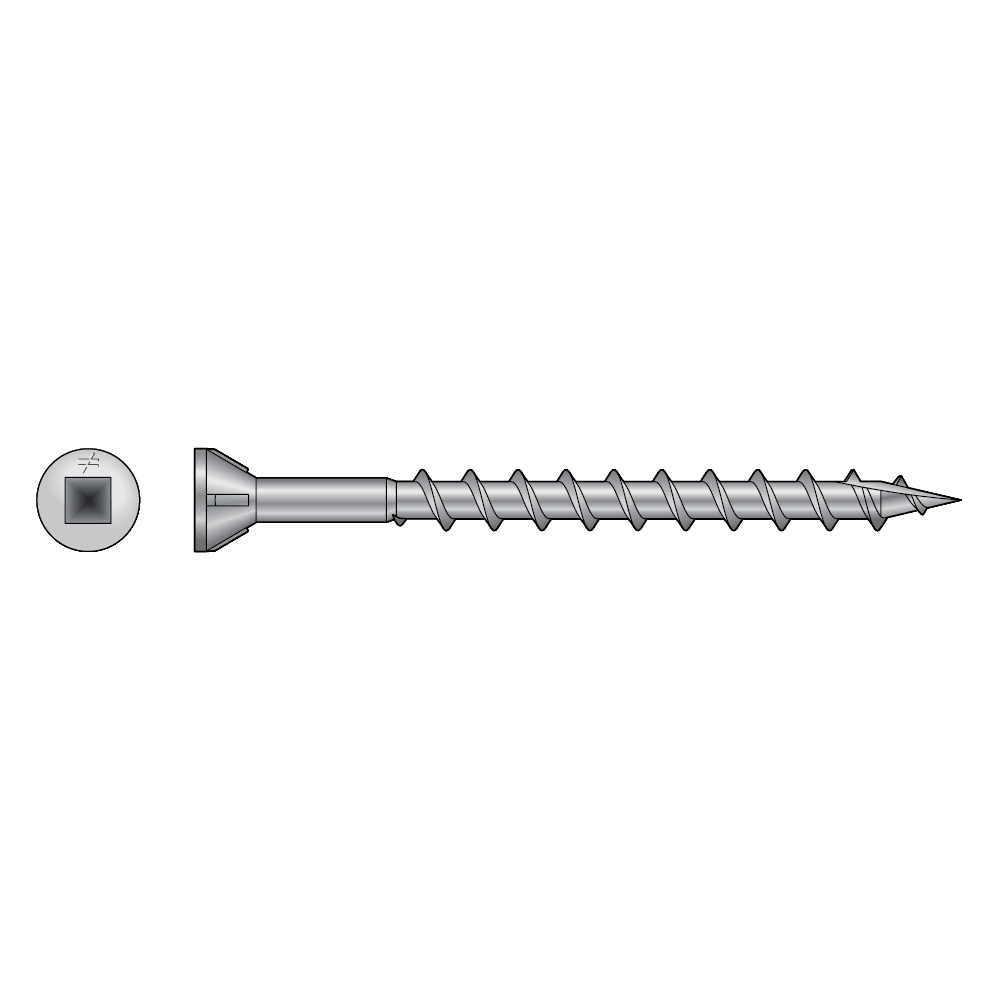

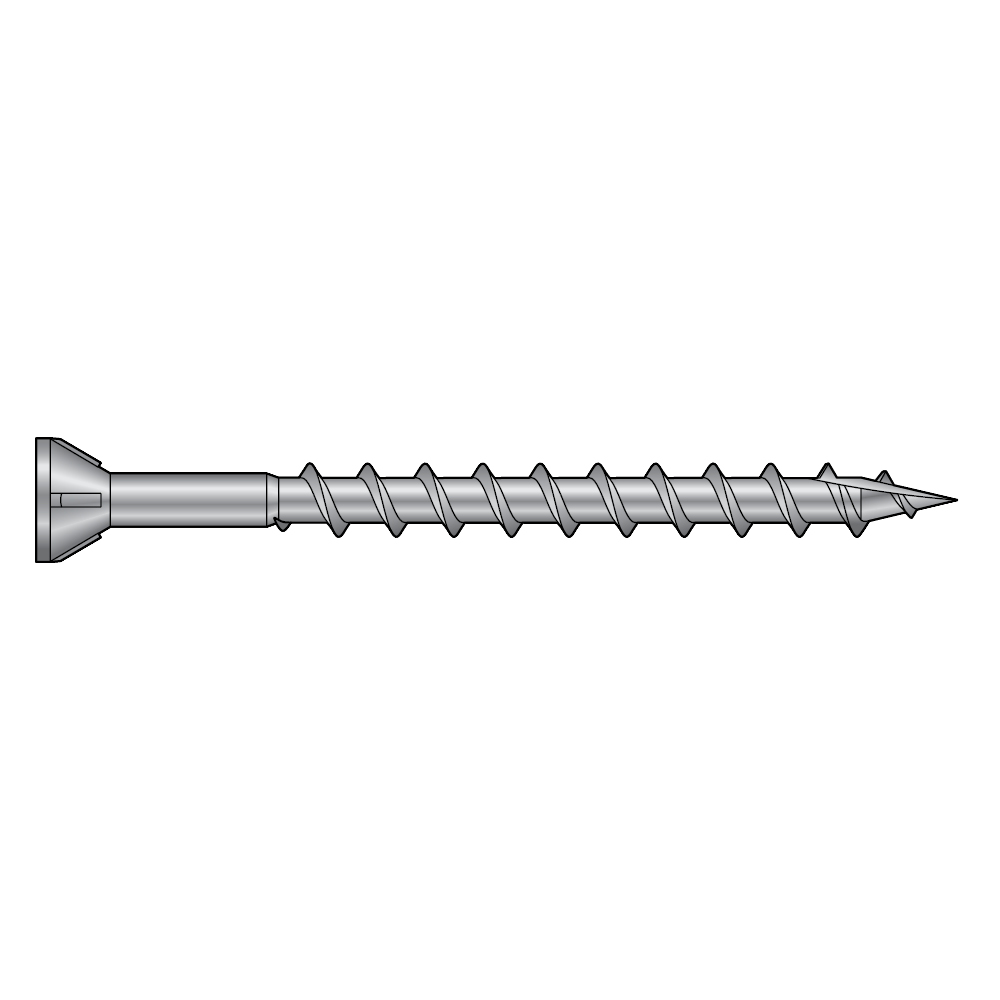

The CHB is a 51mm screw with coarse thread suitable for fixing timber to timber. It has a flat countersunk head with ribs which enables the head of the screw to be easily countersunk into the timber ensuring a neat finish. The screw has a type 17  point which eliminates the need for pre-drilling and reduces the installation torque.

CE Marking
Service class 1
Electro-galvanized steel

Product Details

Images

Features

Material

Steel - Electro galvanised clear zinc coating

Application

Common Applications

  • Subfloor installation
  • Cassette flooring

Technical Data

Dimensions

Product Dimensions UK

References Fastener dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l
CHB51E6.94.1513020002500 - 4000QDPRO51E / QDPRO64E / QD76KE

Certification

Declaration of Performance (DoP)

ZIP Packages
