Connectors for Masonry, Timber and Steel Construction

DSTC / SSTC

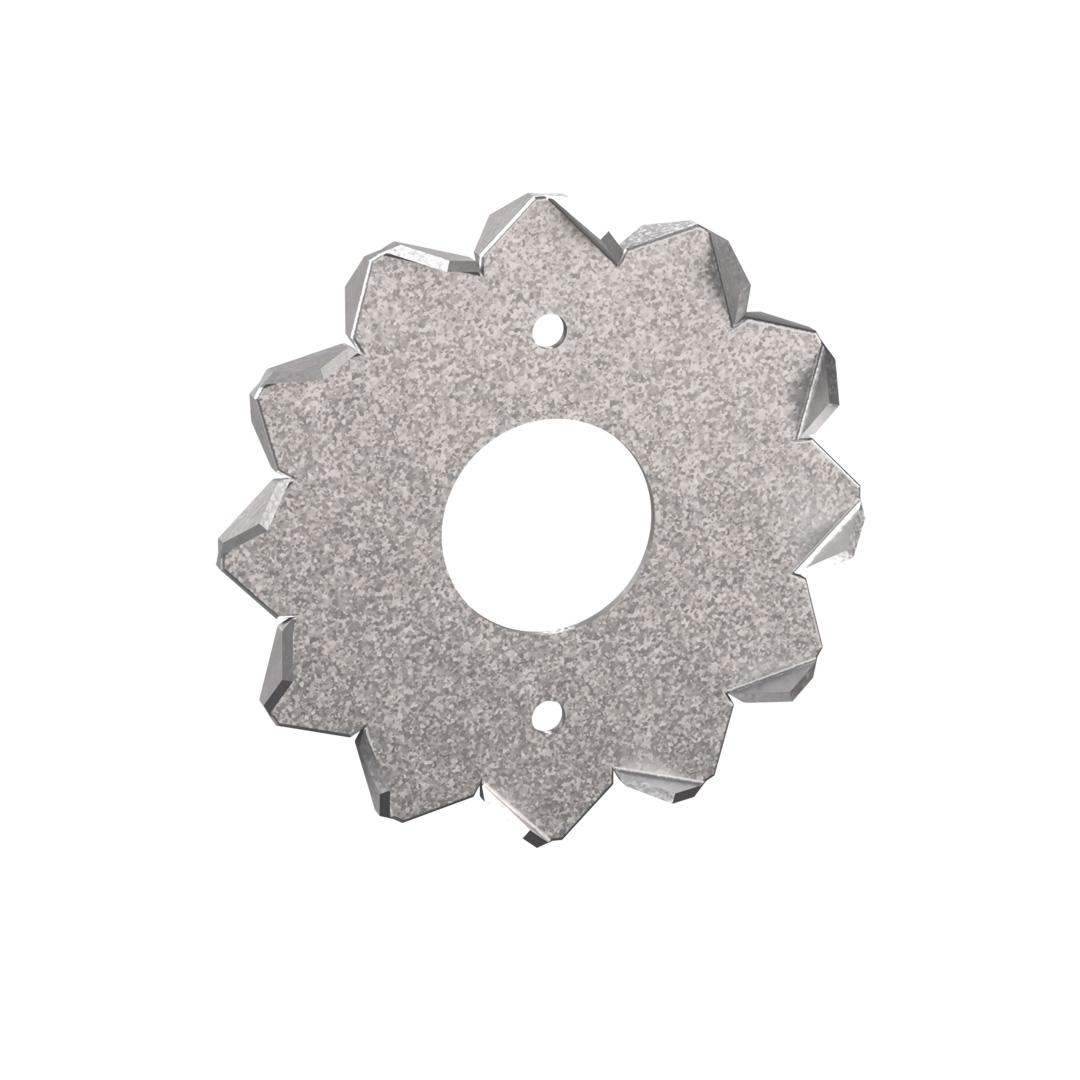

Toothed Plate Timber Connector

Single sided and double sided connector plates for enhanced bolt performance in timber. Conforms to BS EN 912: 1999 Annex C. Specification for toothed plate connectors.

Technical Data Sheet

CE Marking

Technical Data

Dimensions

SSTC/DSTC Product Dimensions

References	Dimensions [mm]			Holes
References	d_c	h_t	t	Ø4	Ø4.5	Ø5	Ø12	Ø17	Ø21	Ø26
SSTC50	48	6.6	1	2	-	-	1	-	-	-
SSTC60	62	8.7	1.2	-	2	-	1	-	-	-
SSTC75	75	10.4	1.3	-	-	2	-	1	-	-
DSTC50C50	48	13	1	2	-	-	-	1	-	-
DSTC60	62	16	1.2	-	2	-	-	-	1	-
DSTC75	75	19.5	1.3	-	-	2	-	-	-	1

CAD and BIM Library

ZIP Packages

2D
2D DWG ZIP

3D/3D Simplified
SAT ZIP

Buy from Distributor

No items available.
