CSA-Z

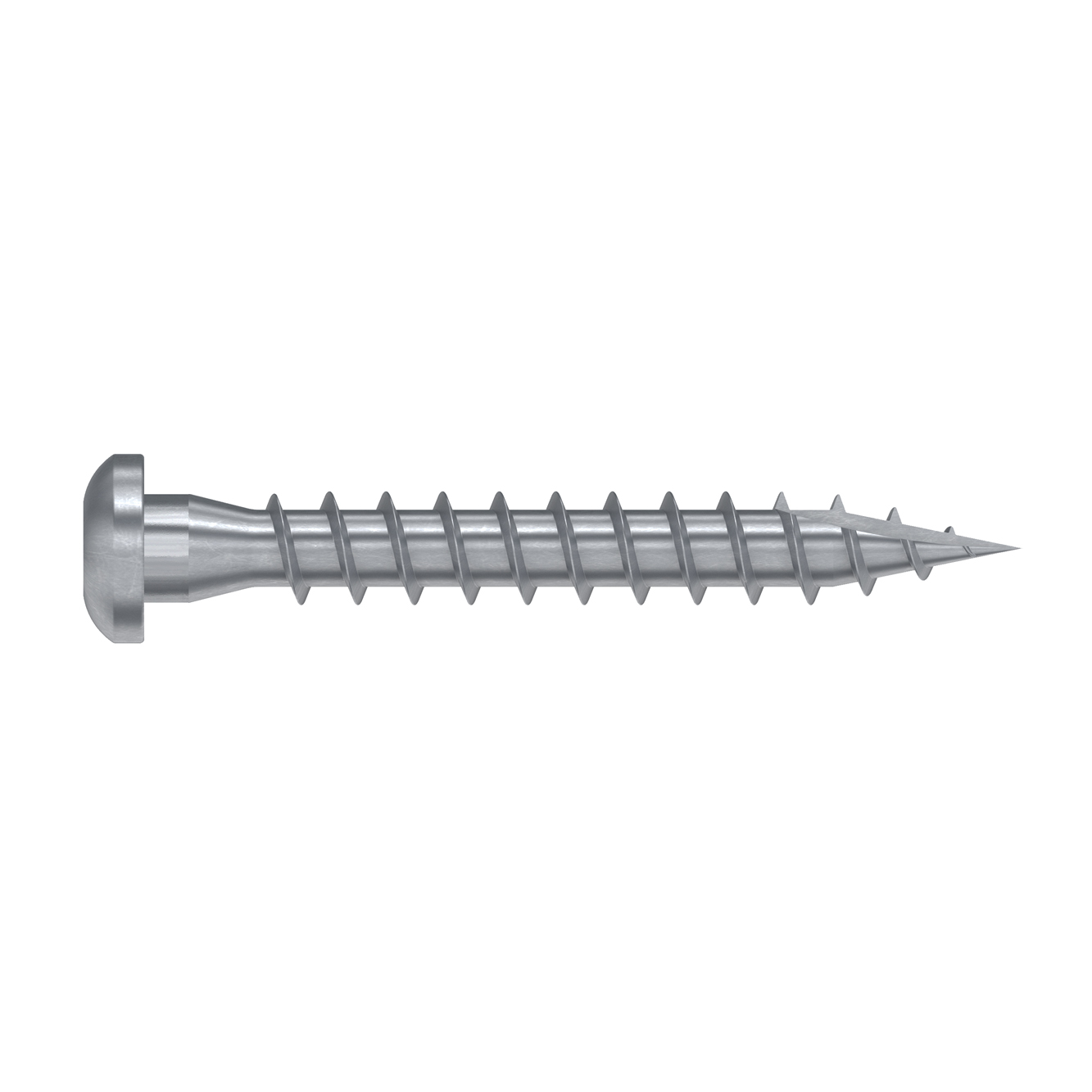

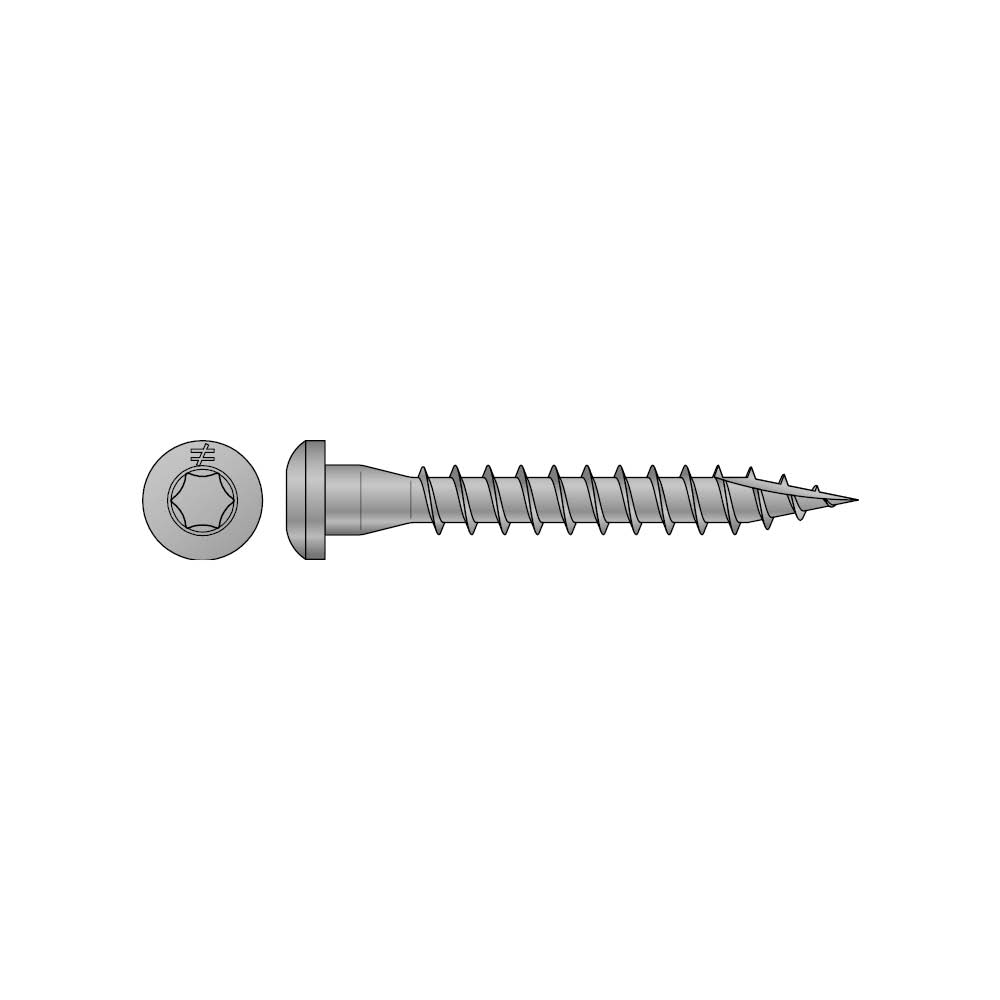

Torx Head Connector Screw
CSA connector screw is developed for mounting of steel connectors to timber.
The conical head secures fully contact to the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The torx helps to fix the screw during insertion.
CE Marking
ETA
Service class 3
Impreg® +
Outdoor
Solid Wood
Product Details
Images
QDBPC50E
Features
Application
Technical Data
Dimensions
Product dimensions and characteristic capacities
| References | DB nr. | NOBB nr. | Gunnebo art.nr | Fastener dimensions [mm] | Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | bit | Rlat.k | Rax.k | |||||

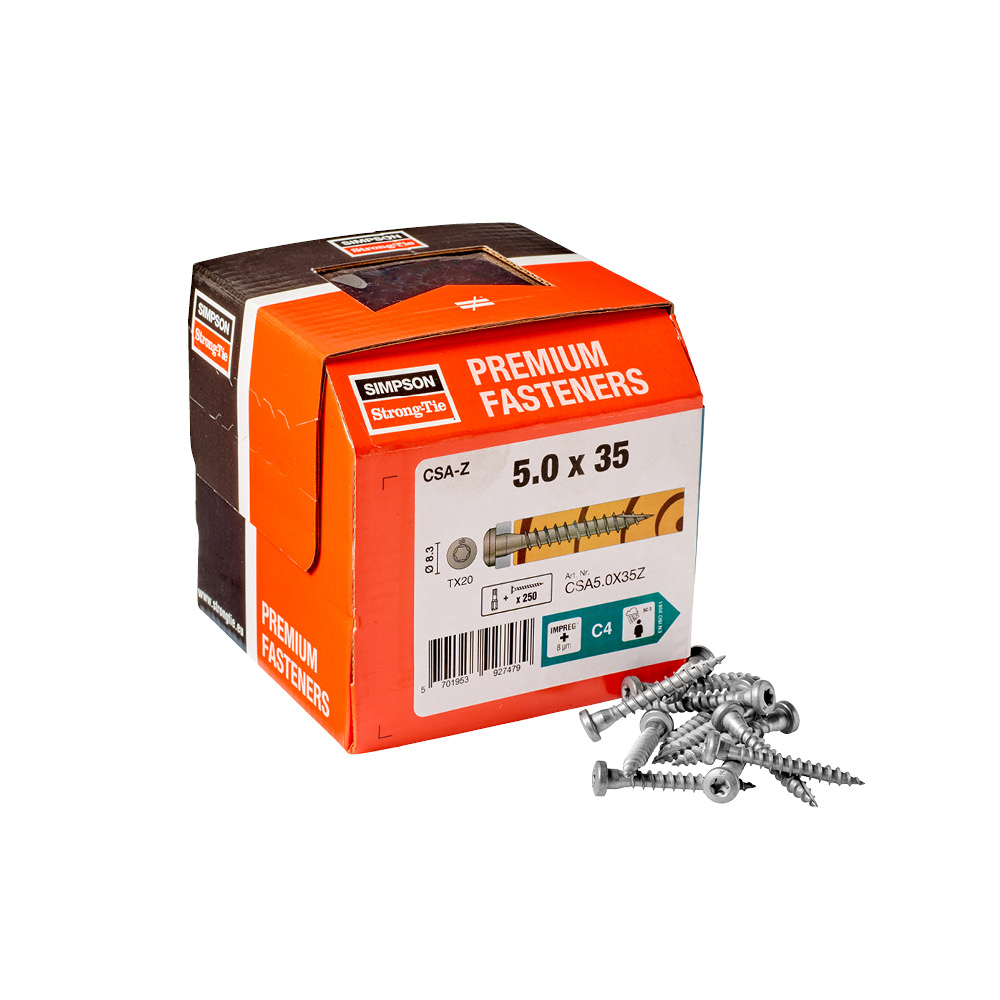

| CSA5.0X35Z | 2056636 | 55836215 | 69836 | 5 | 35 | 8.3 | 3.15 | 29 | T-20 | 2 | 2.1 | 250 |
| CSA5.0X35Z-HV | 2073841 | 55959101 | - | 5 | 35 | 8.3 | 3.15 | 29 | T-20 | 2 | 2.1 | 1500 |
| CSA5.0X40Z | 2056635 | 55842375 | 69815 | 5 | 40 | 8.3 | 3.15 | 34 | T-20 | 2.3 | 2.5 | 250 |

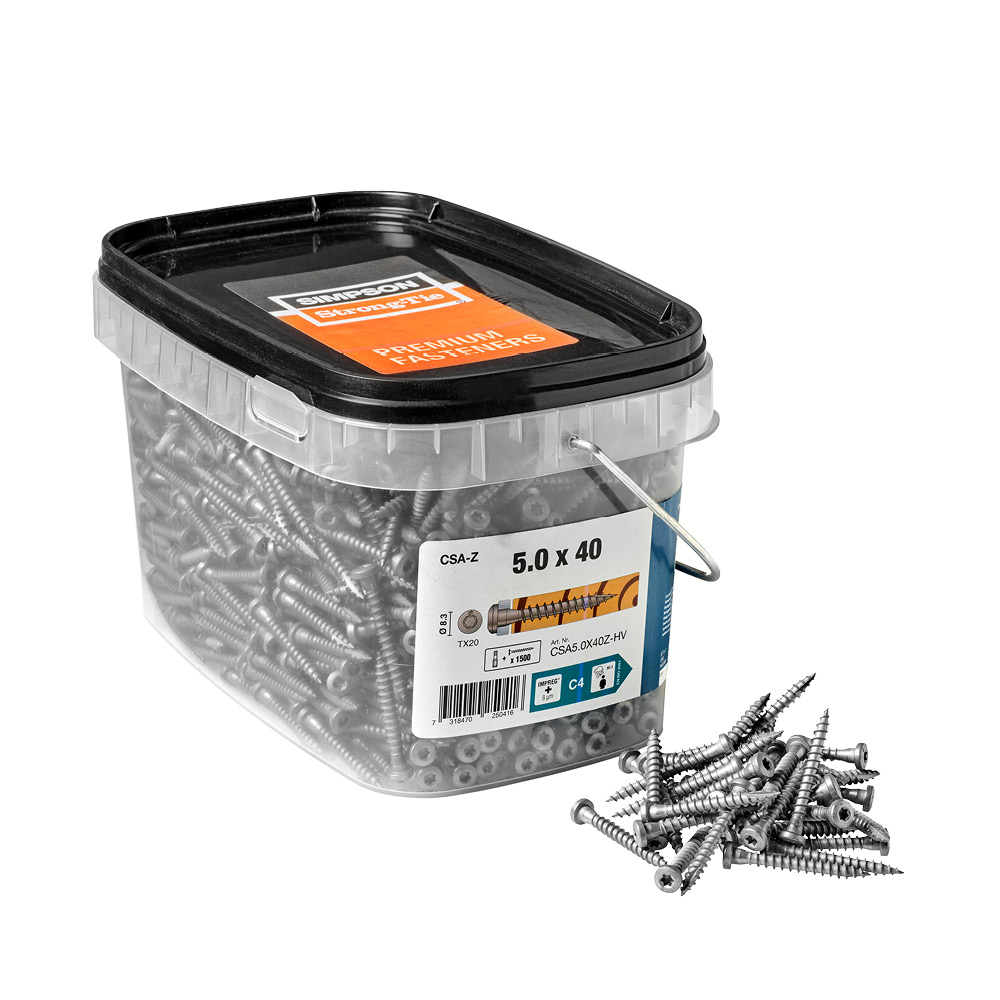

| CSA5.0X40Z-HV | 2073842 | 55959116 | - | 5 | 40 | 8.3 | 3.15 | 34 | T-20 | 2.3 | 2.5 | 1500 |
| CSA5.0X50Z | 2316354 | 60053426 | - | 5 | 50 | 8.3 | 3.15 | 44 | T-20 | 2.6 | 3.2 | 250 |
