Connectors for Masonry, Timber and Steel Construction
Roof Connectors
TCP

Truss Clip

The TCP truss clip attaches girders, trusses and rafters to wall plates to provide wind restraint.

  • TCP Truss Clips may be used for general purposes, to resist uplift wherever one member crosses another.
  • Speed prong provides temporary attachment for ease of installation.
  • Obround holes for easier nail driving.
Technical Data Sheet
CE Marking
ETA
TCP main image

Product Details

Images

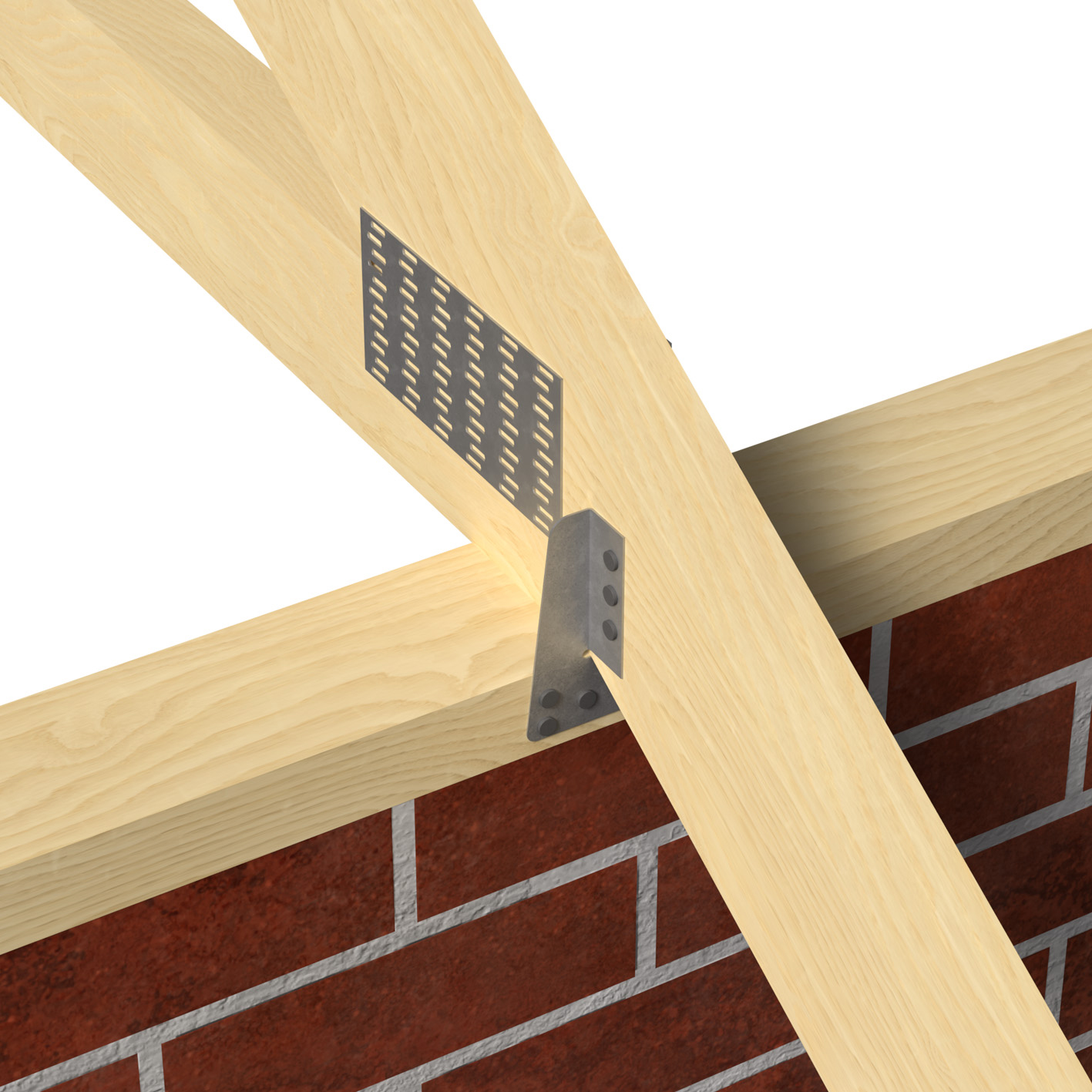

TCP in situ
TCP in situ - from below

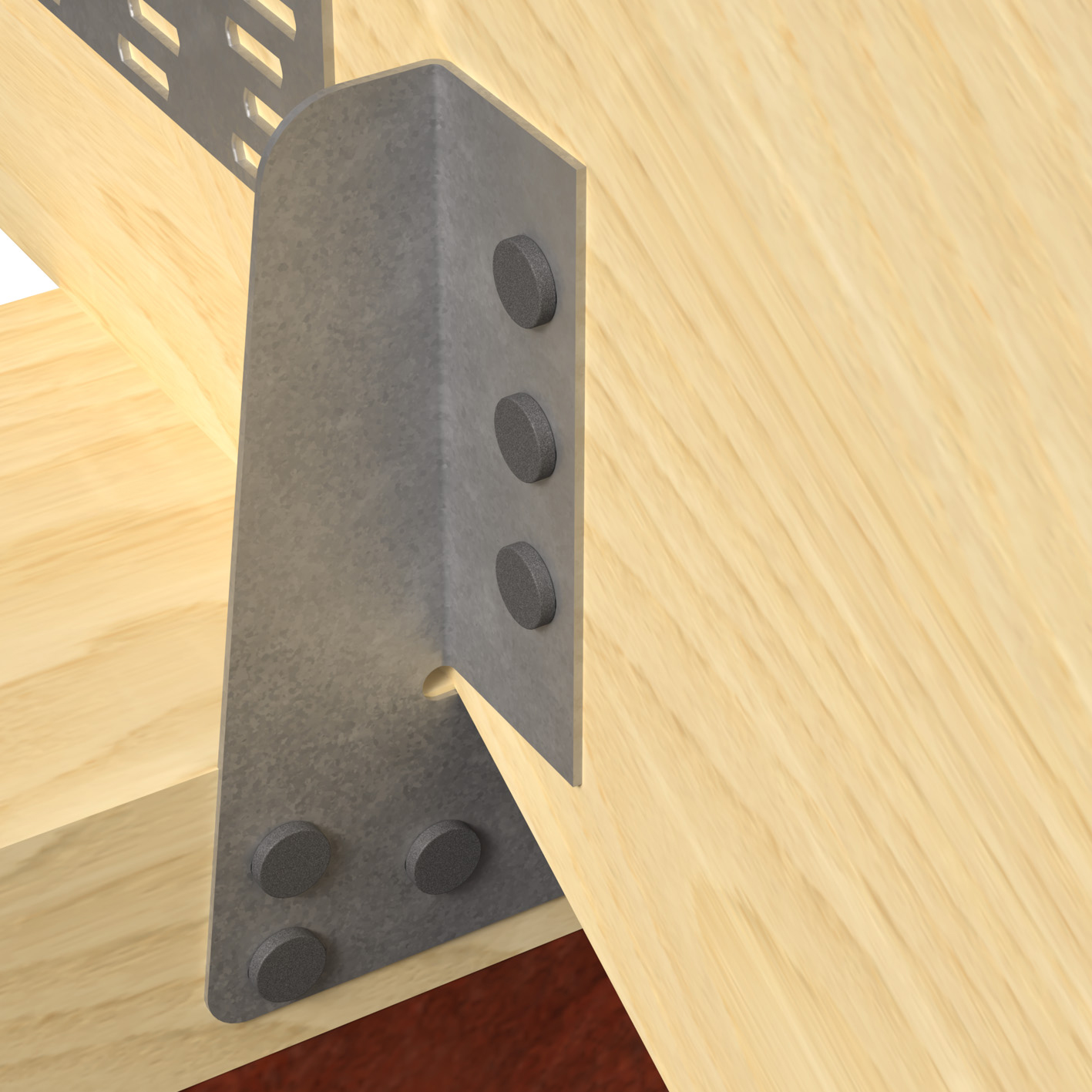

TCP in situ zoom

Application

Material

  • Pre-galvanised mild steel

Installation

  • Use all specified fasteners

Technical Data

Dimensions


TCP

References Connector Dimensions [mm] Header Holes Joist Holes
A B C D t Obround Ø4x6 Obround Ø4x6
TCP3838100181070.966
TCP4747100231070.966
TCP5050100261070.966

Performance Values

References Fasteners Characteristic Capacity [kN] Safe Working Loads  [kN]
Truss Wall Plate R2,k R2, SWL, Short Term
Qty Qty N3.75x30 N3.75x30
TCP663.32.1

Certification

Declaration of Performance (DoP)

uk-dop-e20-1071-02-s.pdf (227.98 KB)
uk-dop-e20-1071-01.pdf (97.89 KB)

European Technical Assessment (ETA)

eta-20-1071-2020-12-20.pdf (1.36 MB)

CAD and BIM Library

ZIP Packages

Buy from Distributor

No items available.
