VHJHM
Very Heavy Masonry Hanger
The VHJHM is a heavy duty masonry hanger intended for supporting timber
joists, beams and trussed rafters from a padstone in a masonry wall.
CE Marking
Product Details
Images
Features
Technical Data
Dimensions

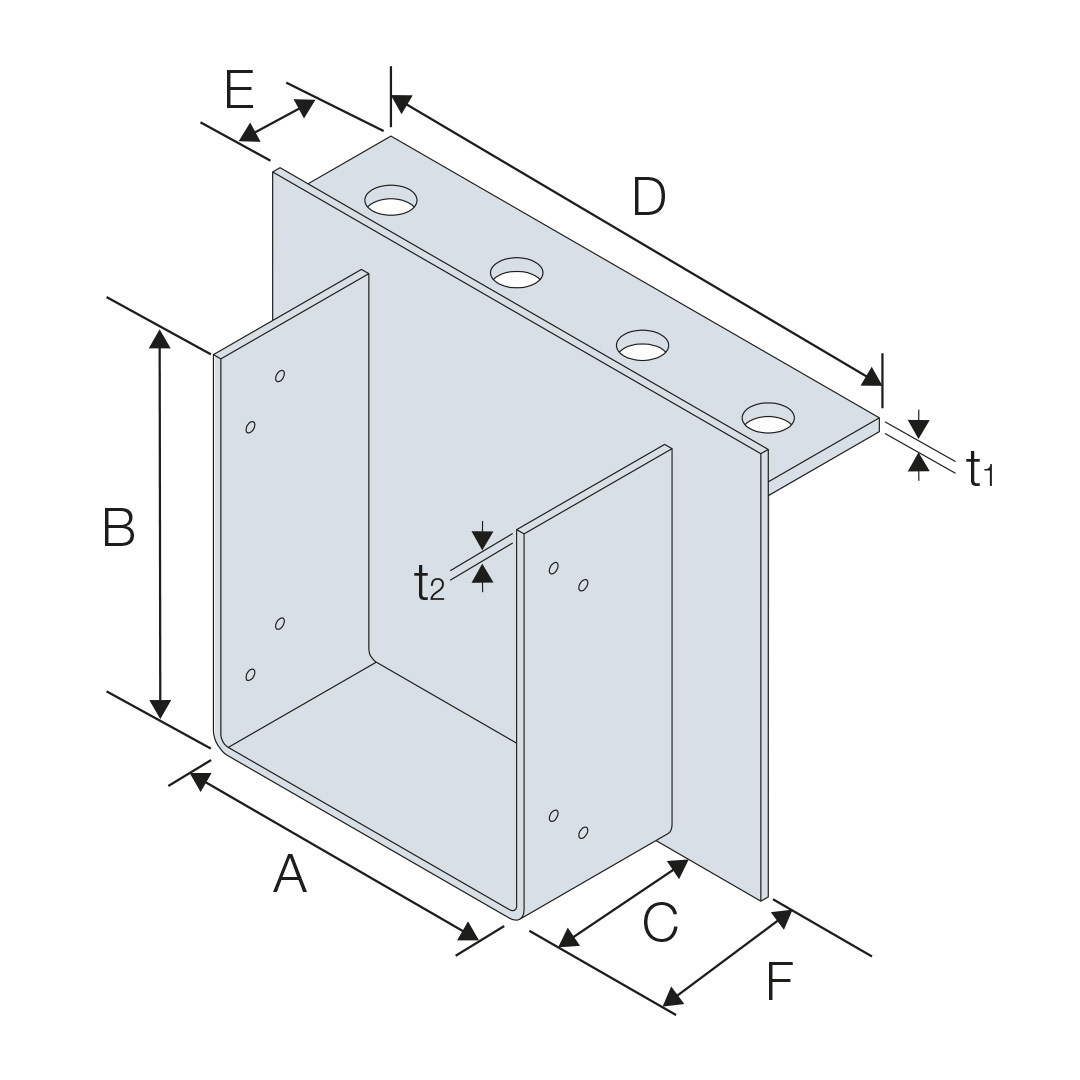

Product Dimensions
| References | Joist Size [mm] | Product Dimensions [mm] | Joist holes | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Width | Height | A | B | C | D | E | t1 | t2 | Ø6 [mm] | |
| VHJHM | 38-300 | 100-450 | 40-300 | 100-450 | 100 | 330 | 75 | 8 | 5 | 8 |
| SPEC E VHJHM | 38-300 | 100-450 | 40-300 | 100-450 | 100 | 330 | 75 | 8 | 5 | 8 |
Top flange thickness is 8mm
Product Capacities - Timber to Concrete - Full nailing
| References | Performance Values | Characteristic Capacity [kN] | Safe Working Loads [kN] | |
|---|---|---|---|---|
| Number of Fasteners | R1.k | R1,SWL,Long term | ||
| Qty | Joist | N3.75x30 | N3.75x30 | |
| VHJHM | 8 | N3.75x30 | 101 | 58 |
| SPEC E VHJHM | 8 | N3.75x30 | 101 | 58 |
1. Hanger is to be installed on a Concrete Padstone, minimum strength C30.
2. A MINIMUM OF 3 COURSES OF SOLID BLOCK (675MM MASONRY) IS REQUIRED ABOVE THE HANGER TOP FLANGE, WITH MORTAR FULLY CURED, BEFORE APPLYING LOAD.
3. Skewed options available: Can be skewed up to 67.5º Left or Right
