WSC

WSC WOOD FLOORING Screw, Coarse Thread

WSC is a screw with a sharp point and coarse thread, suitable for wood to wood applications such as flooring.

Technical Data Sheet
CE Marking
Service class 1
Yellow electro-galvanised steel
Indoor

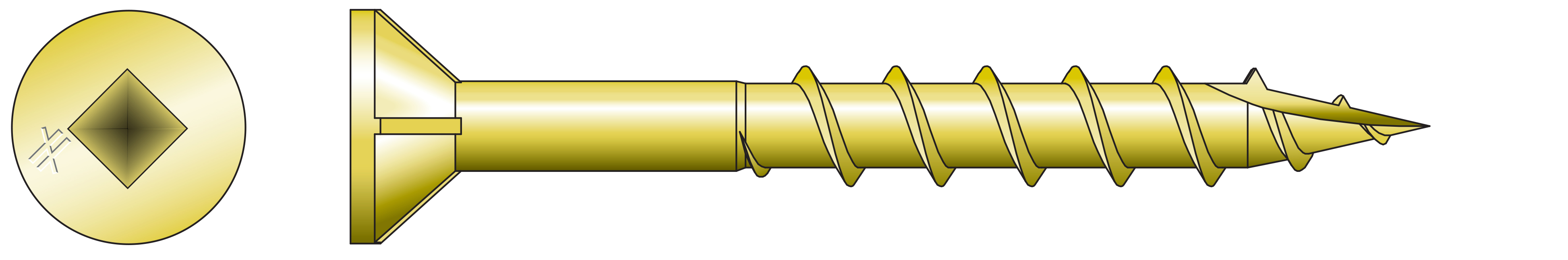

WSC main image.jpg

Product Details

Images

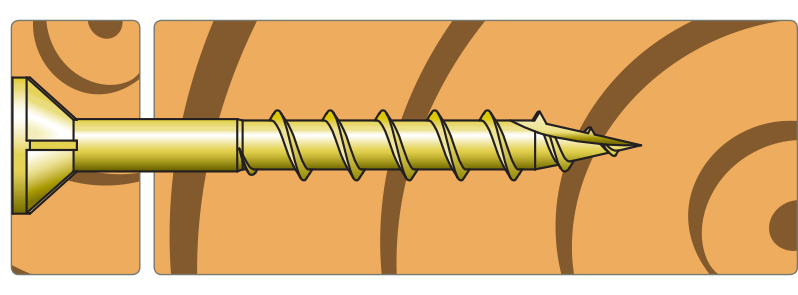

WSC install image.jpg

Features

Material

  • Yellow zinc dichromate

Benefits

  • Wood to wood applications
  • Coarse thread
  • WSC32E has Type 17 point and nibs under the head
  • WSC38E has a sharp point without nibs under the head
  • Bit (BIT2SE) included

Application

Header member

  • Solid wood, composite wood, glued laminated timber,
  • Wood frame.

Applications

  • Subfloor installation

Technical Data

Dimensions

WSC dim image.jpg

Product Dimensions UK

References Fastener dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l
WSC32E8.54.3323025002500 - 4000QDPRO51E / QD76KE
WSC38E4.3383020002500 - 4000QDPRO51E / QD76KE

Certification

Declaration of Performance (DoP)

uk-dop-h10-0015-pdf.pdf (34.85 KB)
232e3d86ac94333c4cc07230d2c81d6568aa9c54.pdf (32.81 KB)
