Anchor Designer™
Our free to use Anchor Designer™ is an innovative calculation software, which calculates all dimensioning of anchors and find the product that precisely meets your needs. It allows for verification of the anchors for the ETAG 001 Annex C and EOTA TR029 (European standards), but also according to ACI 318 Appendix D, CAN / CSA A23.3 Annex D (US GAAP).

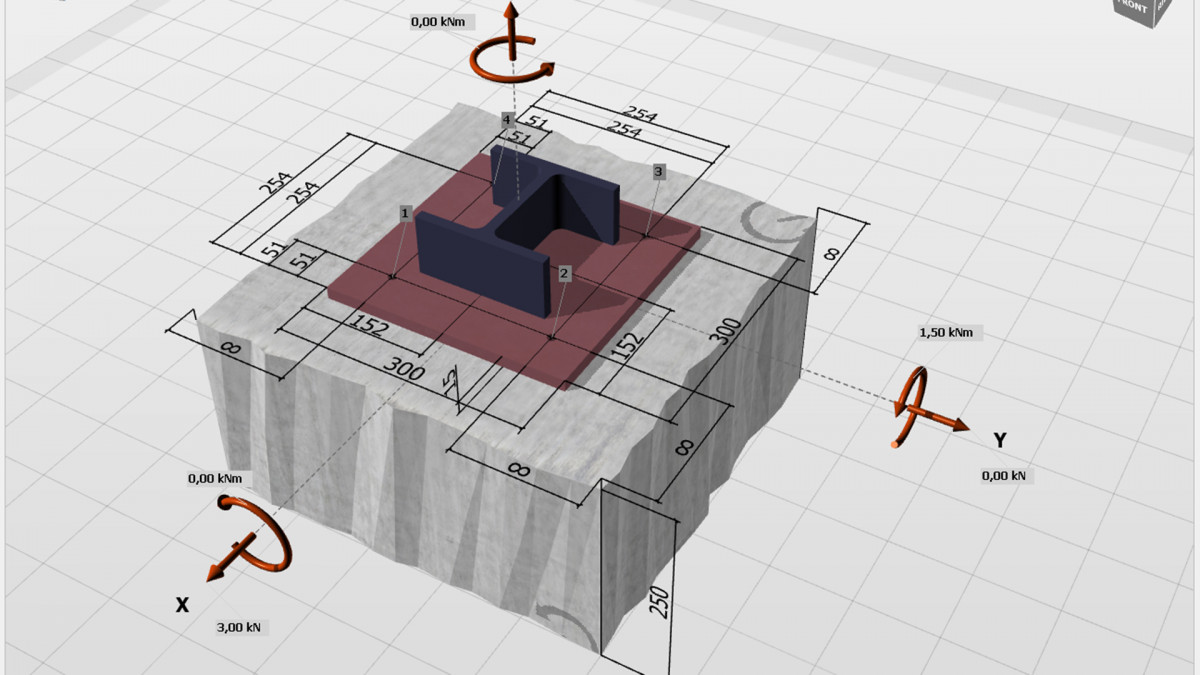

The Anchor Designer ™ software has an intuitive and interactive graphics in 3D. It allows to make ef calculation in metric or imperial for mechanical and chemical anchors. Anchor Designer lets do the math for 1 anchor but also allows to calculate up to 16 anchors.
Anchor Designer™
Specifications
- Everything is done on the same screen
- infinite viewing mode in 3D, allowing you to rotate the fixture in realtime
- Choose a connection and test it, or leave the choice to the software to make its own selection
- View and change data directly on the 3D drawing
- Outputs calculation notes according to the standards applicable in Europe (ETAG001 Annex C / EOTEA TR029) or the US (ACI318 / CSA A23.3)
System requirements
- Windows Server 2003, Windows XP SP2 (or later)
- Microsoft .NET Framework 4.0 (see installation note)
- Resolution Minimum 1024 x 768
Installation Notes
During the installation process, the software will check which version of Microsoft .NET Framework installed on your computer and, if the correct version is not found, it will redirect you to the download center of Microsoft. com Download the redistributable package Microsoft .NET Framework 4.0 (x86), as shown in this link: http://www.microsoft.com/downloads/fr-fr/details.aspx?FamilyID=0A391ABD…;
If you are having trouble downloading this software, please contact us on 01827 255600.
